TIAGO

SUSPENSION



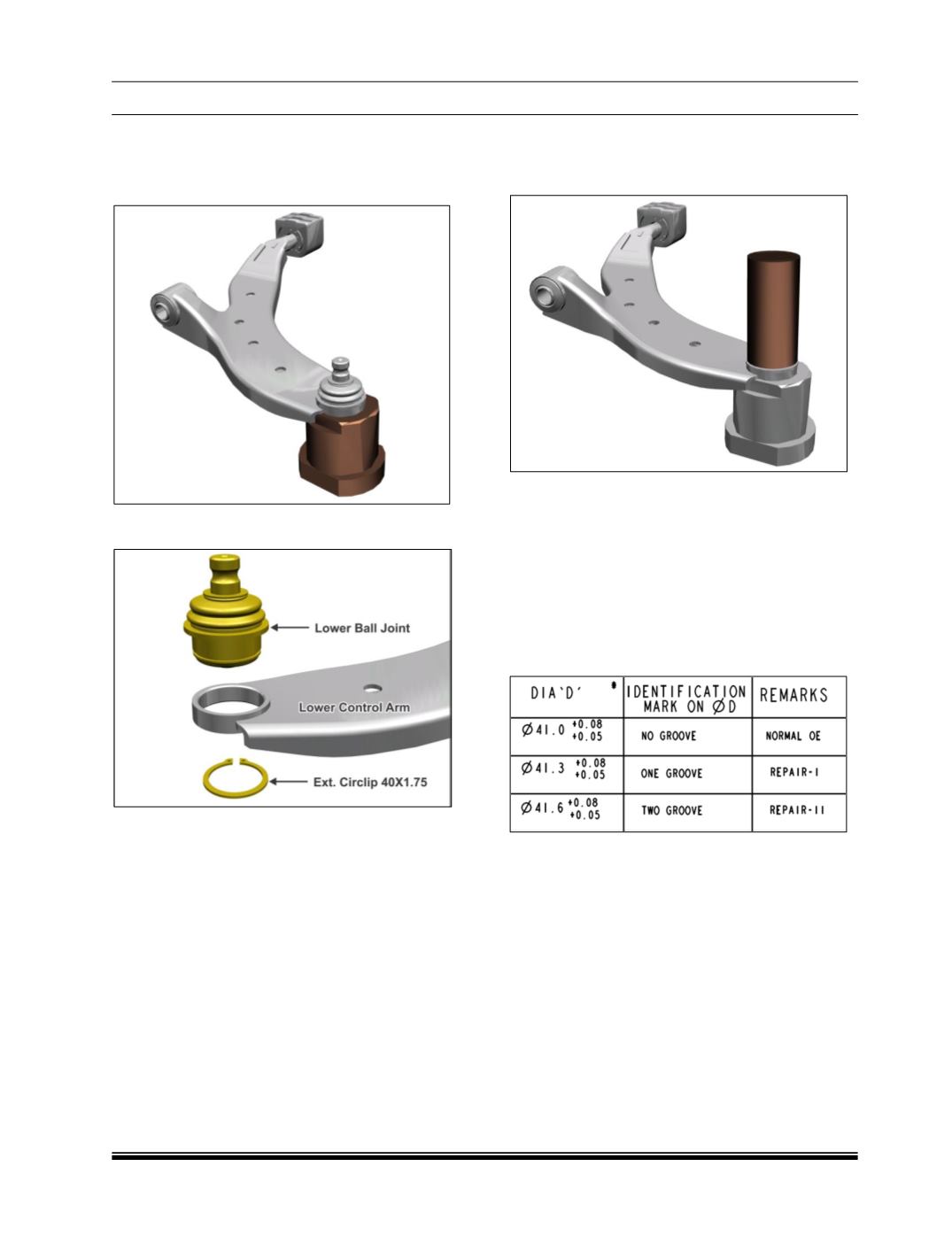

Fitting :

a) Support (part no 5427 5890 3201) to be used

for ball joint assembly on lower control arm.

FIG. 47

FIG. 48

b) Ball joint to be fitted on hydraulic press.

c) Extra care to be taken during fitment to avoid

damage & boot puncher.

d) Apply pressing load using special tool (part no

2779 5890 3501) ball joint housing collar until

collar face butt with mating bush.

FIG. 49

e) Circlip to be assembled after adequate fitment

of ball joint.

NOTE:

Ball joint assembly type repair-1 having bigger OD

to be used while replacement of ball joint first time

and repair 2 for second times.

Ball Joint Repair Sizes
