SUSPENSION

30

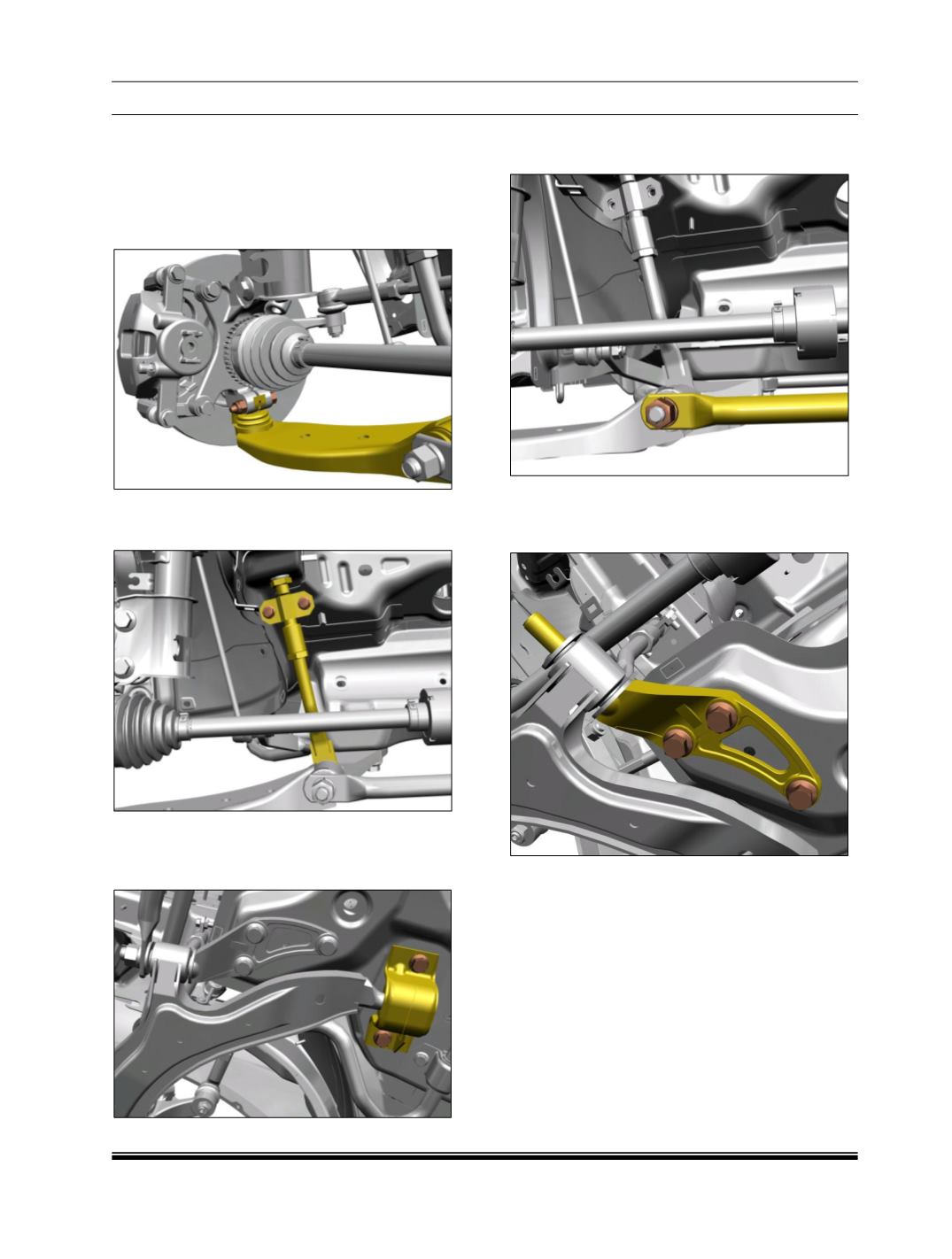

5.7.5. REMOVAL AND INSTALLATION OF

LOWER ARM ASSEMBLY:

1.Remove front wheel.

2.Unscrew nut connecting lower link ballpin and

knuckle.

FIG. 39

3.Unscrew Vertical member bolt.

FIG. 40

4.Unscrew rear mounting bracket bolt and remove

the bracket.

FIG. 41

5.Unscrew nut connecting lower link pin and the

tie member and remove tie-member.

FIG. 42

6.Unscrew 3 bolts on lower link front bracket

spindle.

FIG. 43

7.Remove lower link assembly along with rear

mounting rubber bush and front bracket.
