TIAGO

SUSPENSION



SUB ASSEMBLY - KNUCKLE / HUB:

Clean all the parts thoroughly and replace damage

/ worn out parts.

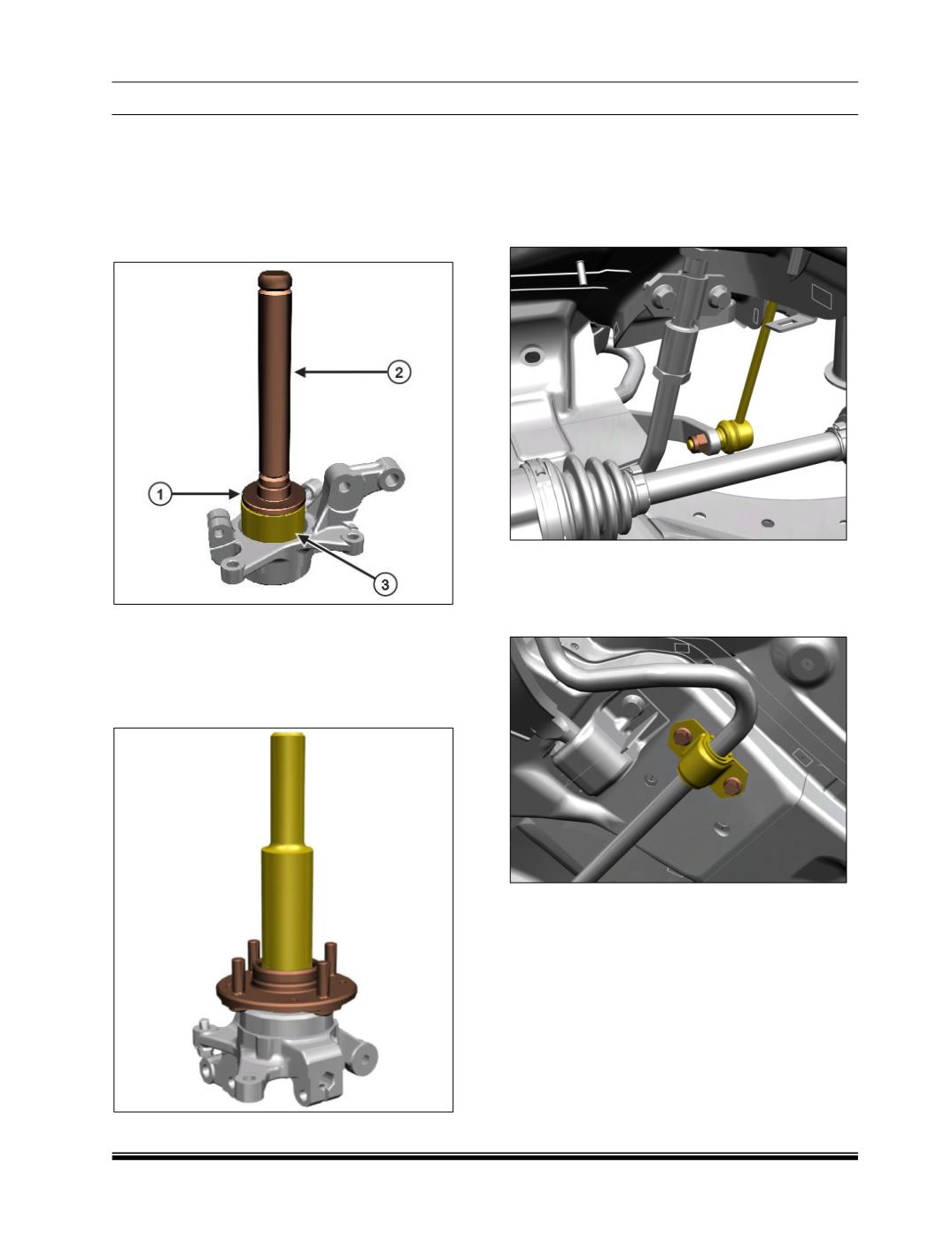

1.With the help of drift (1) part No. 2779 5890 3301

and handle (2) part No.2640 5890 3511 fit bear-

ing (3) in the knuckle.

FIG. 34

2.Fit the circlip in knuckle.

3.Place the knuckle assembly over the hub. Using

drift part No. 2576 5890 4401 press the knuckle

assembly on the hub.

FIG. 35

5.7.4 REMOVAL AND INSTALLATION OF ANTI

ROLL BAR:



REMOVAL:

1. Loosen & Remove the Stab link mounting form

the antiroll bar.

FIG. 35

2. Loosen & Remove the LH / RH side mounting

form the body of antiroll bar & Take out the anti-

roll bar.

FIG. 36
