TIAGO

SUSPENSION



INSTALLATION:

1. Follow the above steps in reverse order in ap-

propriate sequence for its assembly.



PRECAUTION:

While assemble / dismantle/ tightening of stab link

on vehicle in service, we need to refer following

points

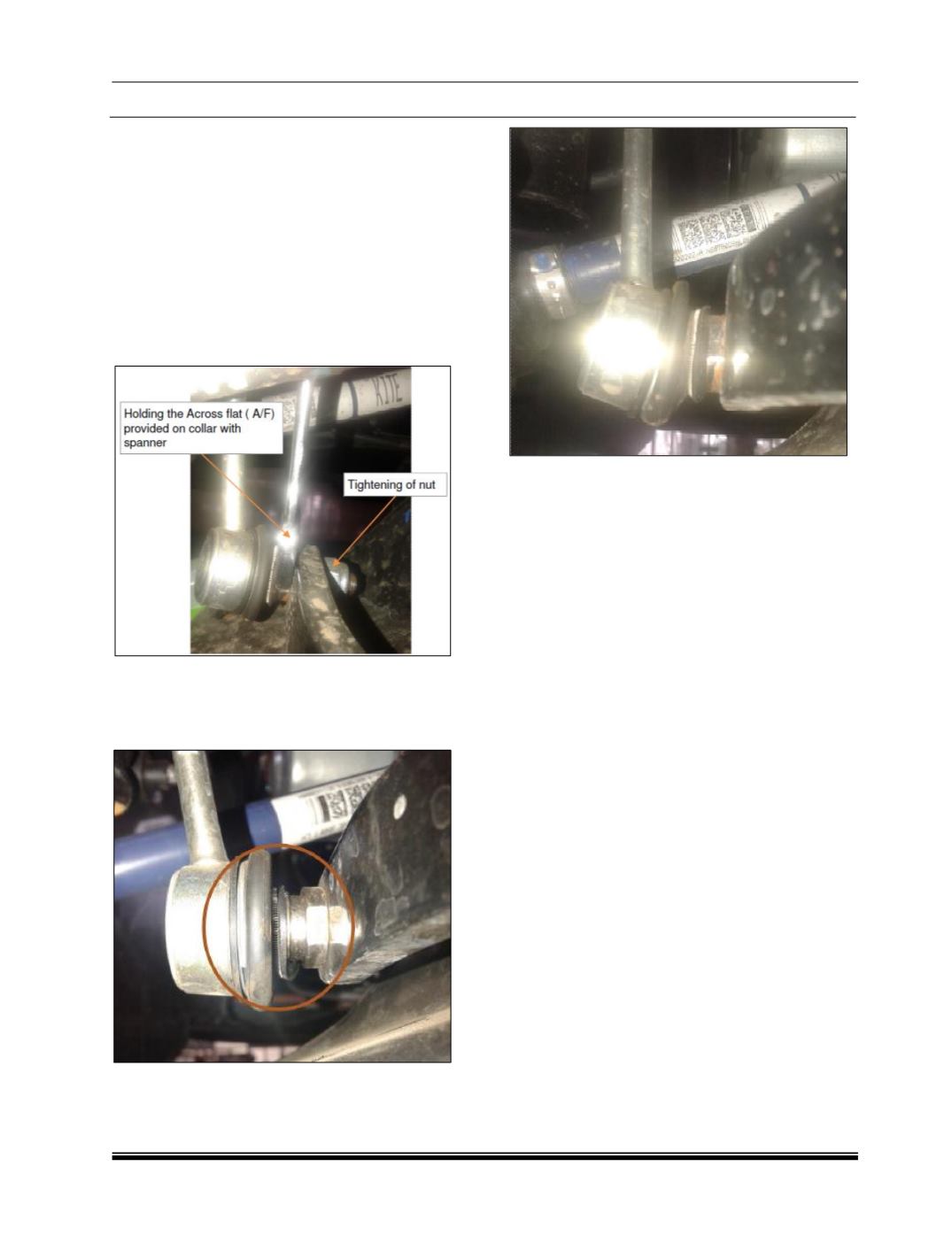

1. While tightening of stab link ball joint, first hold

the across flat provided other side of nut with

spanner and then tighten the nut to desired

tightening torque.Fig.37.

FIG. 37

2. Shifting of boot should not happen on vehicle

while assembly/Tightening of stab link ball

joint. Fig.38a & 38b.

FIG. 38a (Not Recommended)

FIG. 38b (Recommended)

3. If boot shifting is observed before/after while fit-

ment on vehicle , then need not to try for re-

fitment of boot to original position on stab link ,

As assembly of Retainer ring requires special

tool to bring at its original position. In such type

of cases, strictly we need fit new stab link in-

stead of boot shifted stab link.
