5.8 ASSEMBLY REAR SUSPENSION

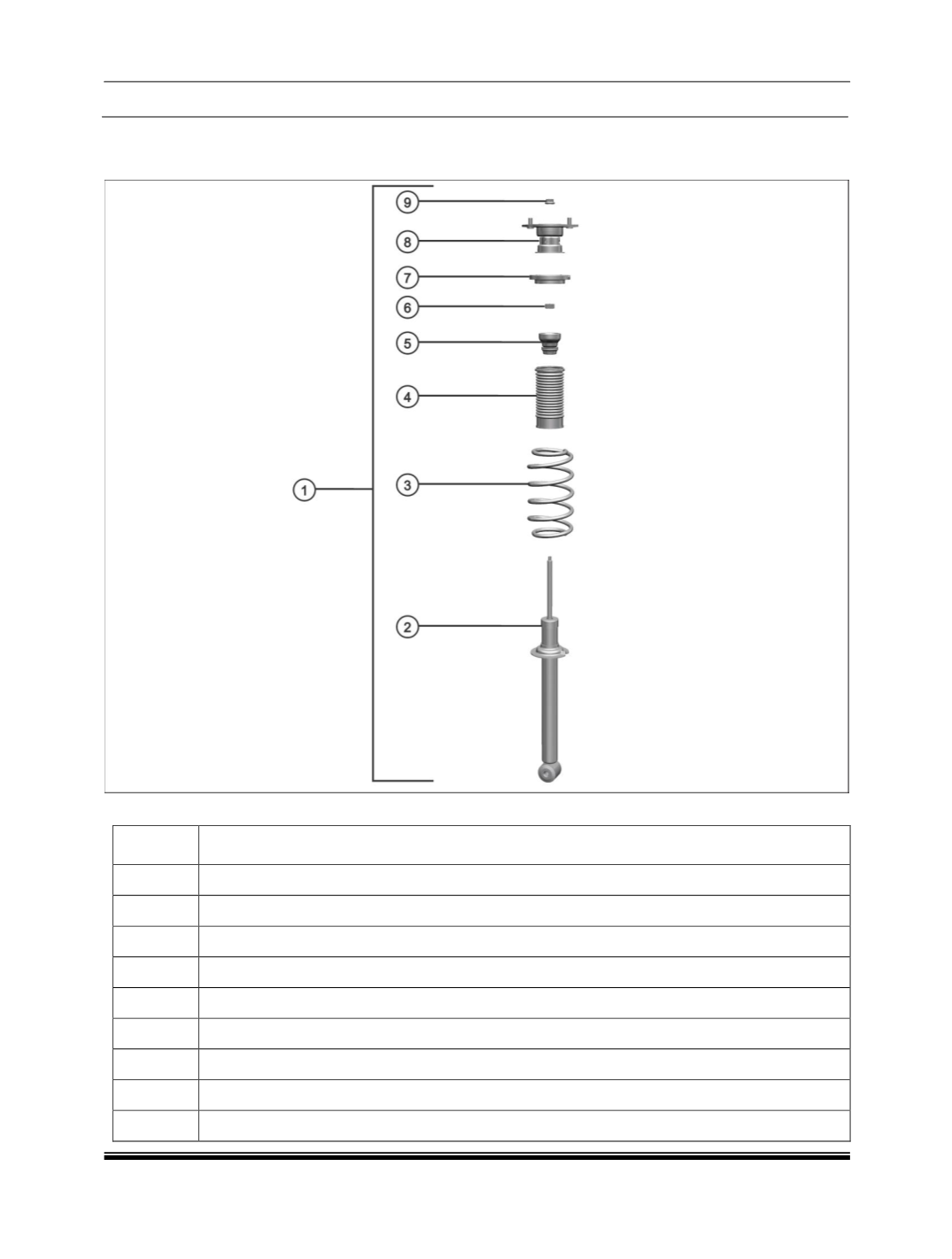

5.8.1. REAR SHOCK ABSORBER EXPLODED VIEW
FIG. 56
SR. NO.
DESCRIPTION
01
ASSY REAR SHOCK ABSORBER COMPLETE
02
REAR SHOCK ABSORBER ASSY
03
SPRING REAR SUSPNESION
04
DUST COVER (REAR SHOCK ABSORBER)
05
BUMP STOPPER ASSY. REAR
06
STOPPER (ASSY. TOP MOUNT) HEX NUT M12X1.25
07
TOP SPRING SEAT RUBBER
08
ASSY. REAR TOP MOUNT
09
HEX FL NUT AM12X1.25
