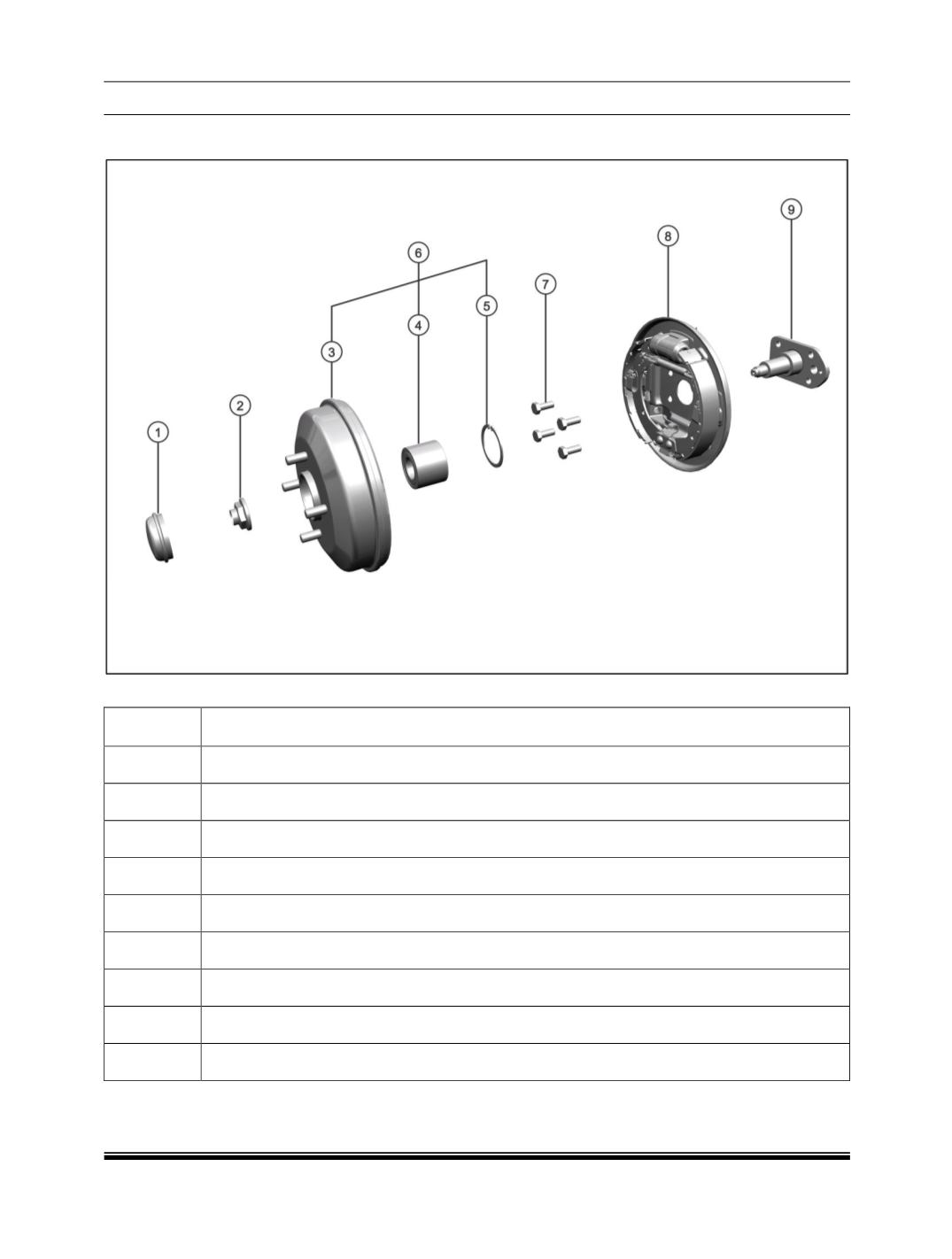

5.8.2. REAR HUB ASSEMBLY EXPLODED VIEW
FIG. 57
SR. NO.
DESCRIPTION
01
HUB COVER
02
LOCK NUT
03
ASSY.REAR BRAKE DRUM WITH PIN
04
ANGULAR CONTACT BALL BEARING
05
INTERNAL CIRCLIP 58X2N
06
ASSY BRAKE DRUM COMPLETE
07
HEX BOLT M10X1.25X35
08
ASSY REAR BRAKE
09
SPINDLE
