SUSPENSION

26

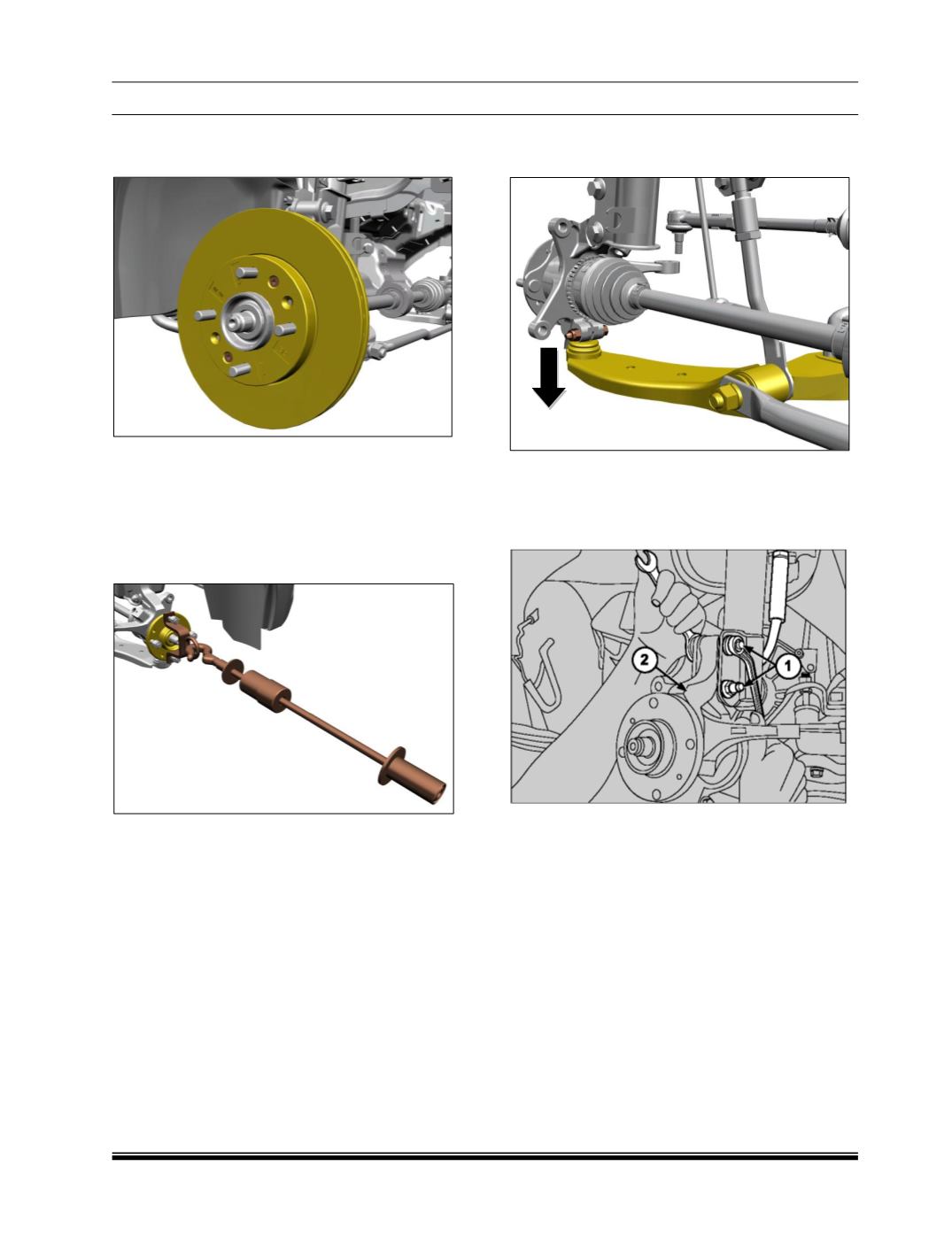

13. Unscrew the disc holding screws and remove

the disc.

FIG. 26

14. Unscrew the sensor mounting screw and re-

move the sensor (if applicable).

15. Pull out the hub with the help of puller part No.

2702 5890 3302 and striker part No. 2702

5890 3304.

FIG. 27

16. Remove puller from the hub.

17. Remove ball joint of lower arm from the

Knuckle.

FIG. 28

18. Remove strut bottom mounting bolts 1 from

the knuckle assembly 2 by supporting the

drive shaft.

FIG. 29
