SUSPENSION

25

5.7.3 REMOVAL AND INSTALLATION OF

WHEEL HUB:



REMOVAL:

1.

Place the vehicle in the two-post lift and apply

parking brake.

2.

Remove wheel rim cover.

3.

Loosen the wheel mounting bolts.

4.

Lift the car till the front wheels are off the

ground.

5. Unscrew the wheel mounting bolts and remove

the wheel.

6.

Unscrew and remove tie rod ball joint nut.

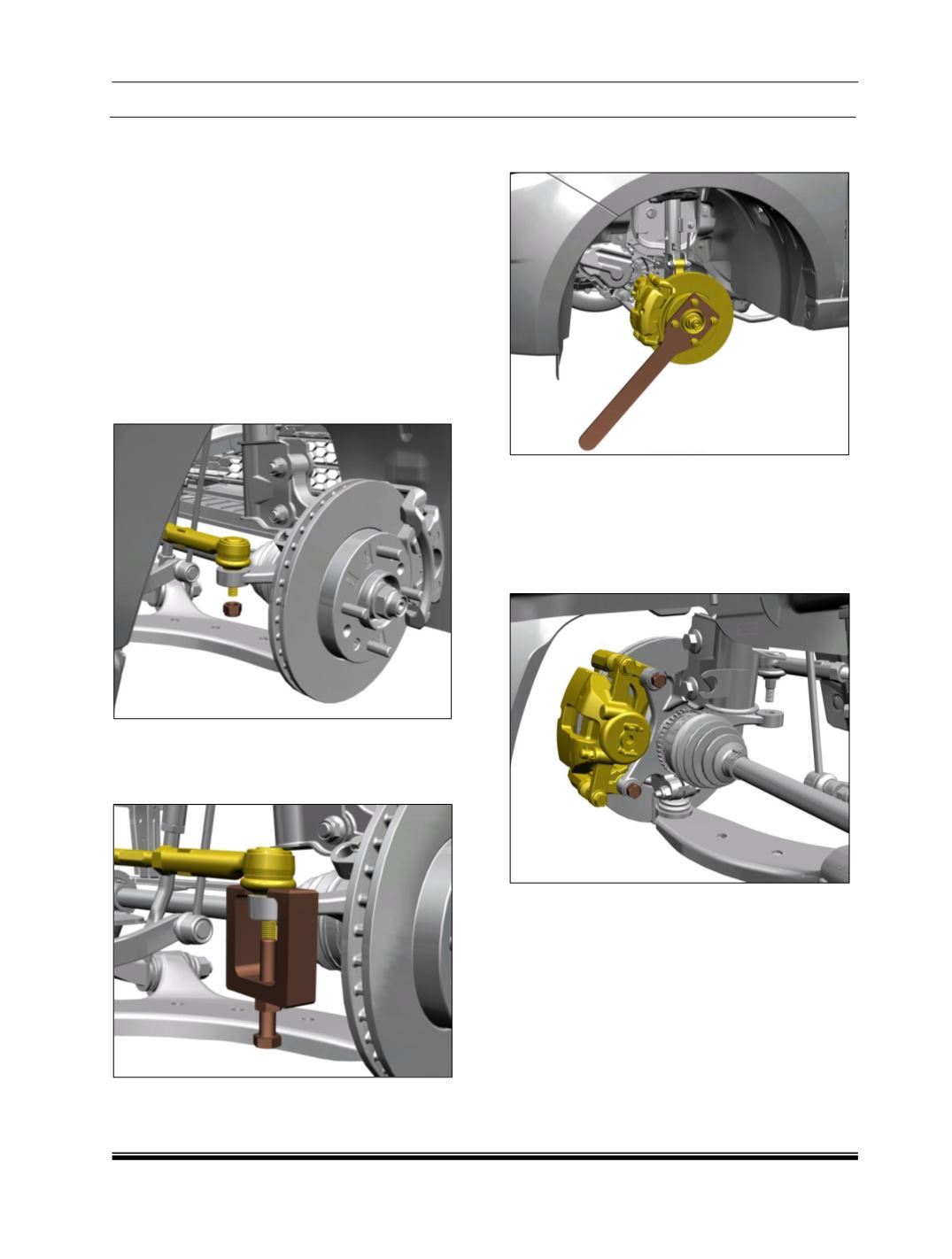

FIG. 22

7. Remove tie rod ball joint using puller part No.

2702 5890 4602.

FIG. 23

8. Support the lower arm from bottom.

9. Hold hub assembly with holder part No. 2702

5890 3301 as shown in figure 24.

FIG. 24

10. Unstake and unscrew drive shaft nut and take

out the thrust washer.

11. Remove holder from the hub assembly.

12. Remove the caliper housing from the knuckle.

FIG. 25
