TIAGO

SUSPENSION

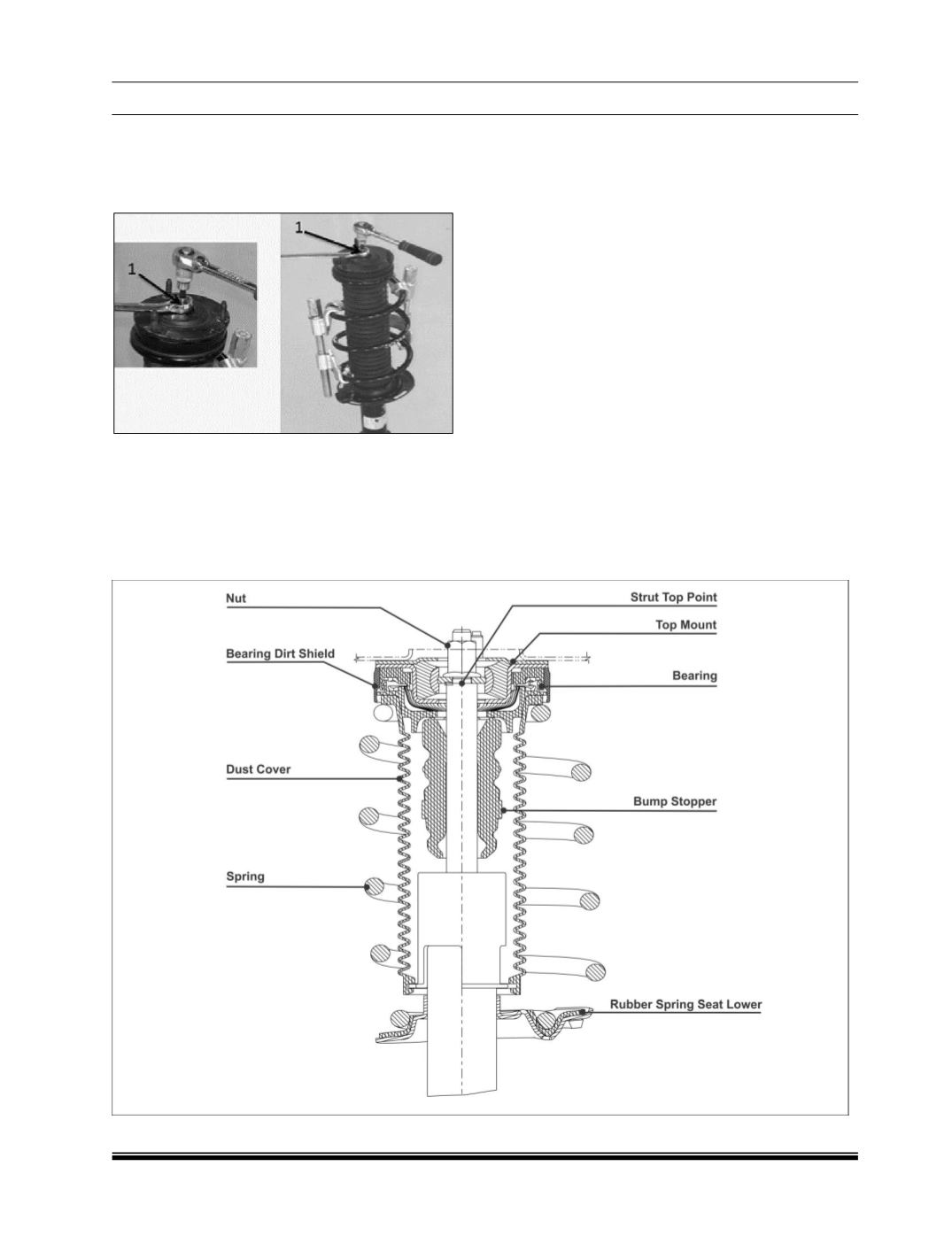

9. Fit Hex sp. Flange nut (1) and tighten to 6 - 7

Kg.m torque. Hold the piston rod by Allen key

(A/F: 6 mm) to stop piston rod rotation during

tightening of nut figure 20.

FIG. 20

10.Remove spring compression tool carefully.

11.Lock the dust cover with striker cap as shown

in Figure 21.

CUT SECTION VIEW OF FRONT STRUT:

FIG. 21
