SUSPENSION
23
ASSEMBLY

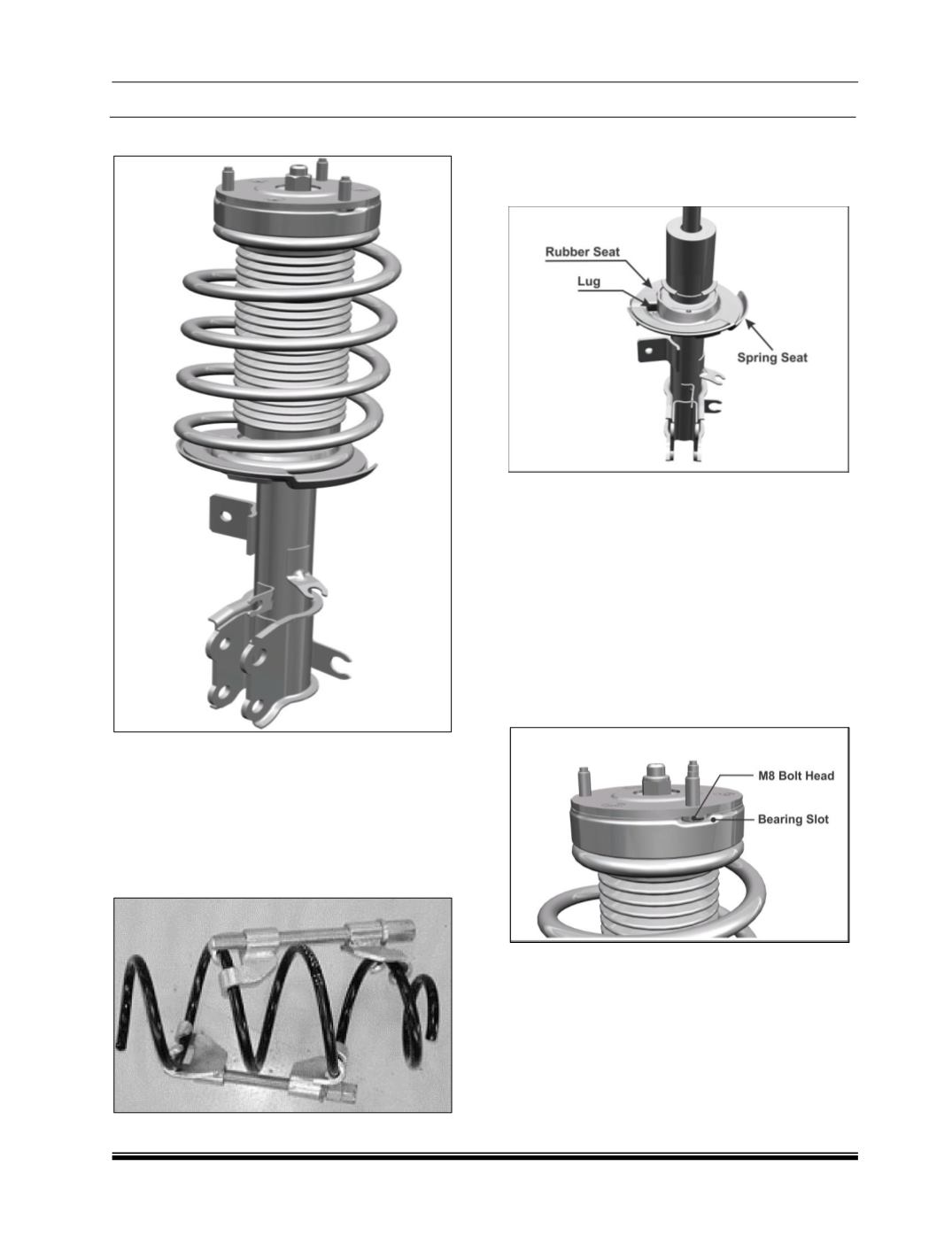

FIG. 16
Check the condition of the components before as-
sembly and replace if found Damage.
1.Compress the spring with spring compression
tool part No. 2702 5890 3202 to reduce length
as done during disassembly as shown in figure
17.
FIG. 17
2. Insert the compressed spring on the damper
(ensure that the spring end is located at Lug in
rubber seat lower, which assembled separately
on spring seat) figure 18.
FIG. 18
3.Pull strut piston rod up to full extended length.
4.Insert bump stopper.
5.Assemble dust cover on the spring.( ensure dust
cover is properly located on spring)
6.Assemble bearing on the dust cover.
7.Assemble bearing dust cover on bearing.
8.Assemble top mount on bearing.( ensure top
mount M8 bolt head should be placed in the
bearing slots) figure 19.
FIG. 19
