ELECTRICAL
12

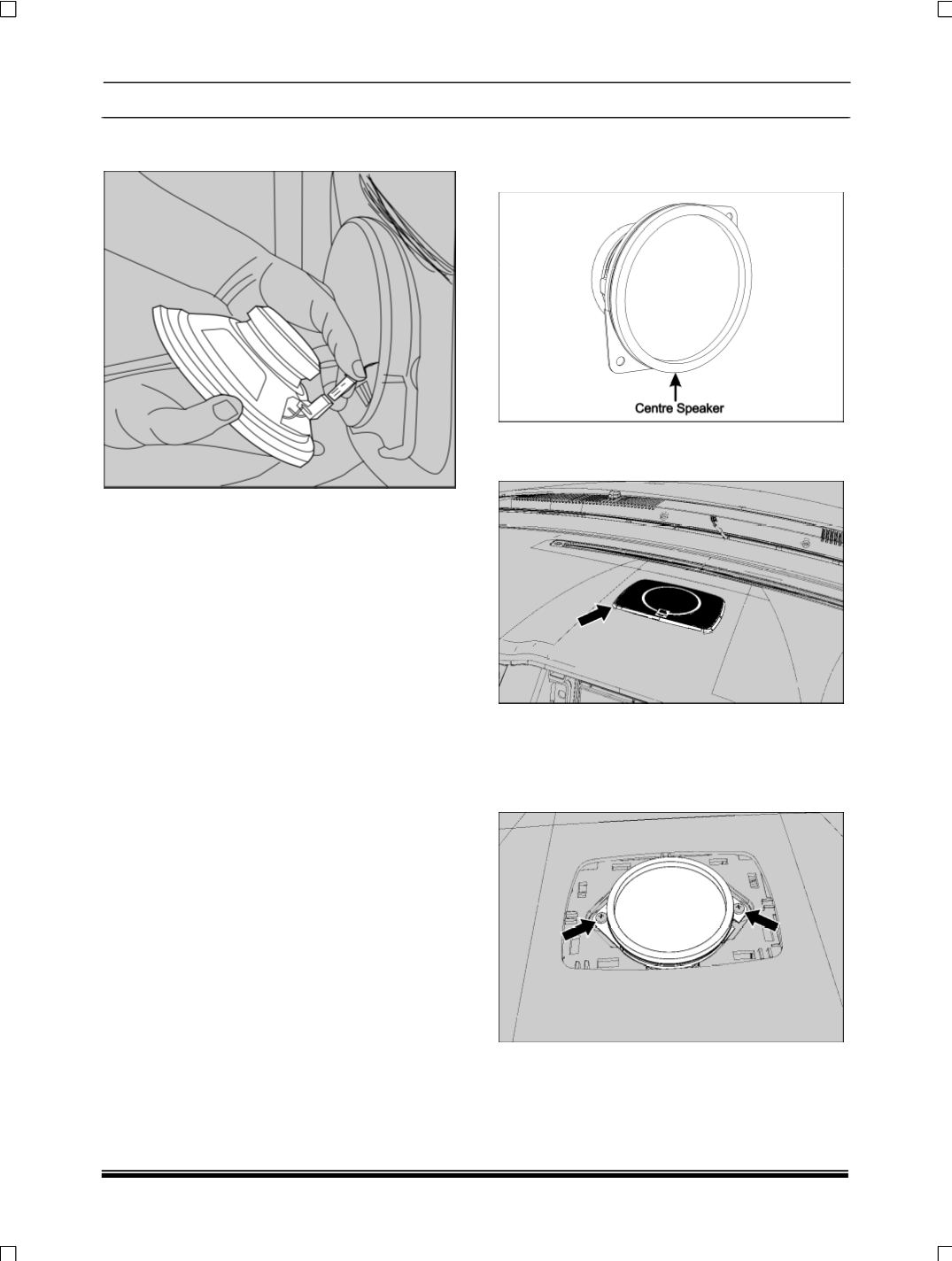

2.Pull out the speaker. Disconnect the connection
and take out the speaker.
REFITMENT:
1.Connect the electrical connection.
2.Fit the speaker on speaker spacer and tighten
the three mounting screws of speaker.
Tightening torque for screws – 0.3 Kgfm
3.Fit the door trim.
NOTE:
Same procedure is applicable for other door
speakers.
4.4.3.2. CENTER SPEAKER:
Center Speaker is a full range speaker
produces mid frequencies.
LOCATION:
Center Speaker is mounted on dashboard.
REMOVAL:
1.Remove the speaker grille (
Refer body section
).
2.Loosen and remove the two mounting screws of
speaker.
3.Disconnect the electrical connection of speaker
& take out the speaker.
REFITMENT:
Follow the reverse procedure for fitment.
