ARIA

ELECTRICAL

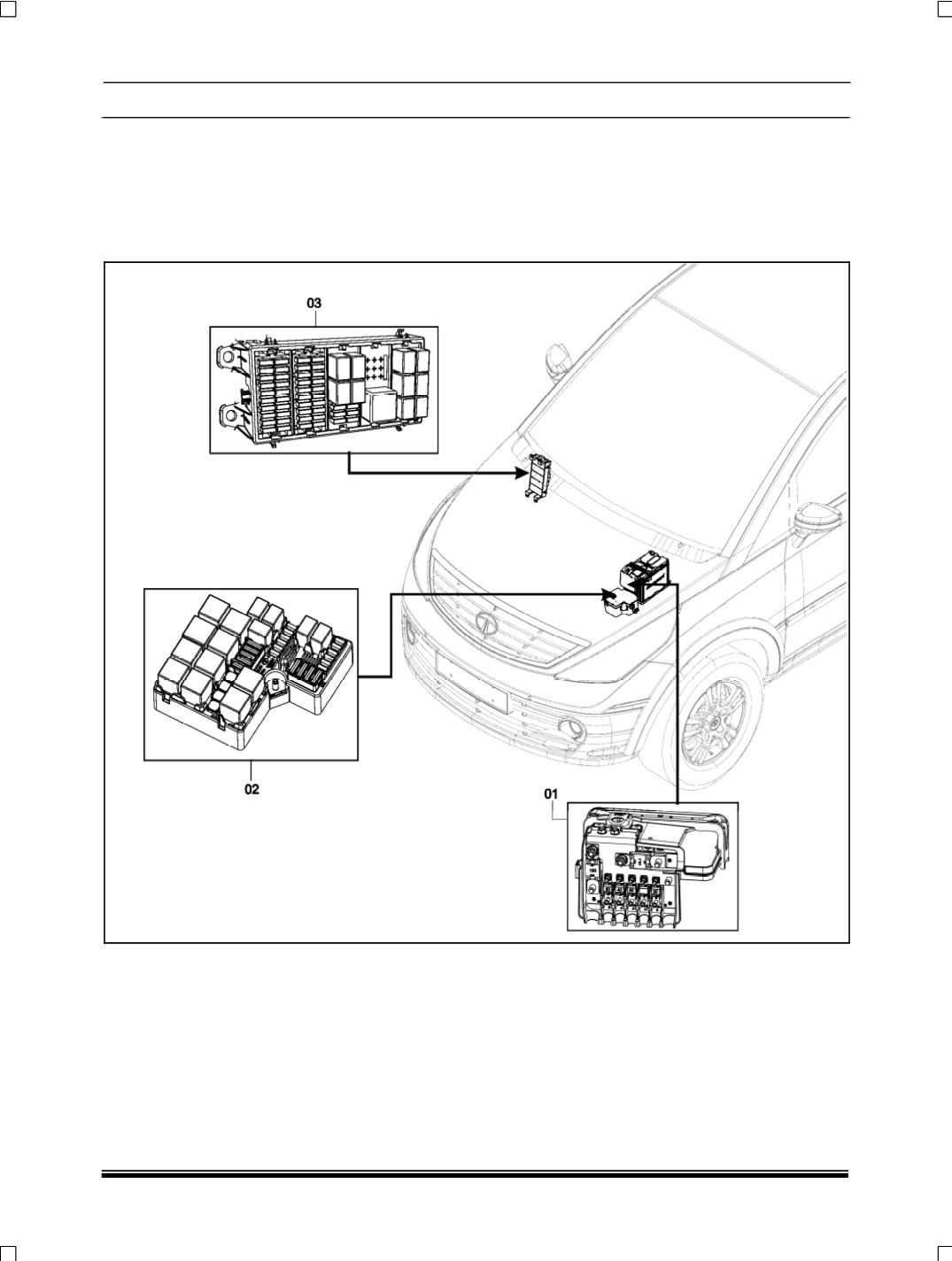

4.5. FUSE & RELAY BOX DETAILS:

The fuses & relays are located in three fuse boxes,

1.Battery mounted fuse box or BDU (Battery distribution unit) mounted on battery in engine compartment

2.Engine compartment fuse & relay box or MDU (Main distribution unit) in the engine compartment.

3.Cabin fuse & relay box under the dashboard on driver side RH. It is part of main wiring harness.

01- Battery mounted fuse box

02- Engine compartment fuse & relay box

03- Cabin fuse & relay Box
