C. Making telephone Calls:
Three different options are
available where dialing a telephone
number is concerned:
•
Dial the telephone number manually,
•
Select the telephone number from the Phone Book.
•
Select the telephone number from the list of recent dialed calls.

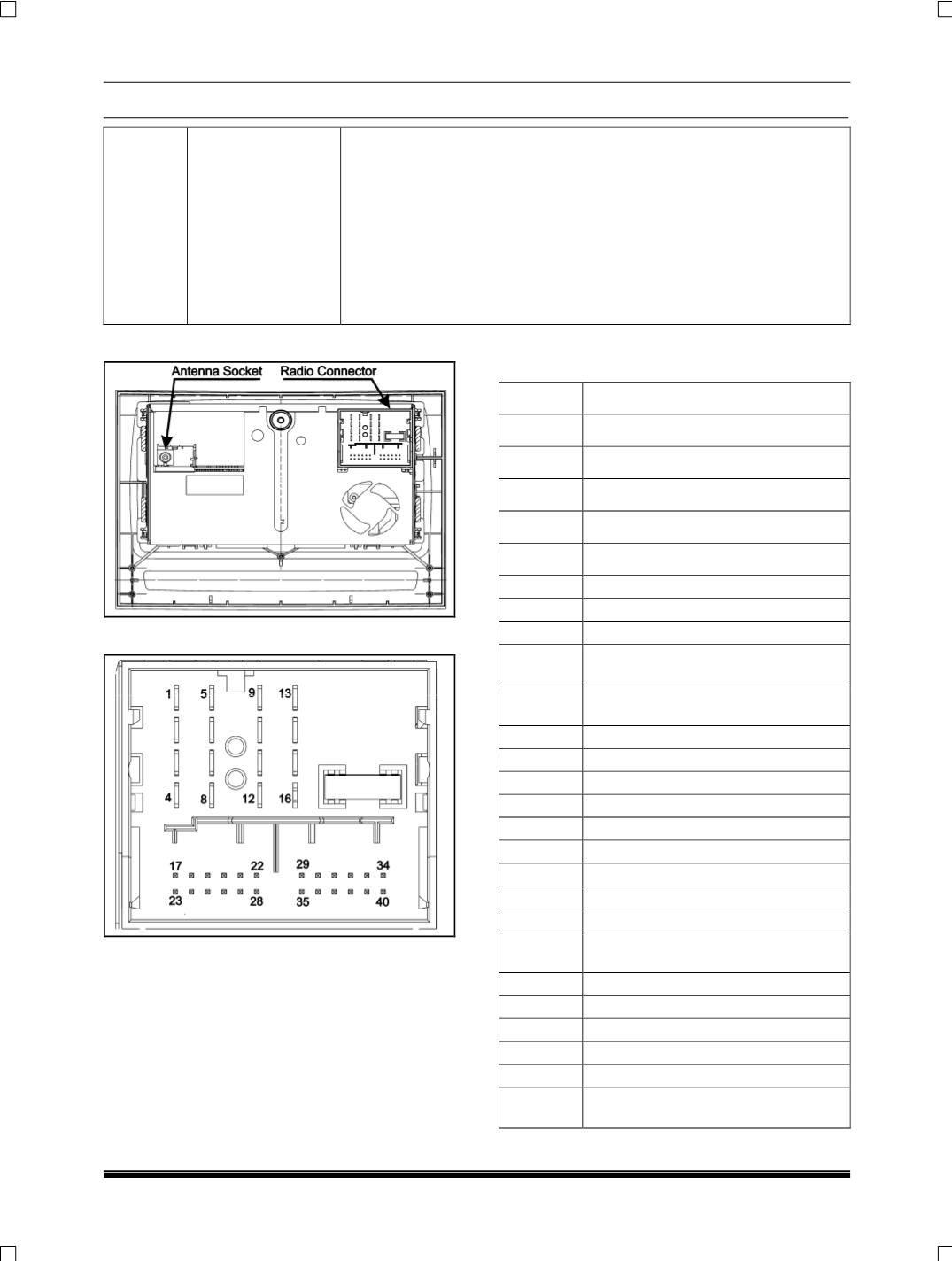

4.4.1.5. CONNECTION DETAILS:
4.4.1.6. CONNECTOR DETAILS:
4.4.1.7. PINOUT DETAILS:
PIN NO
DESCRIPTION
1
Speaker RR+
2
Speaker RF+
3
Speaker LF+
4
Speaker LR+
5
Speaker RR-
6
Speaker RF-
7
Speaker LF-
8
Speaker LR-
9
Internal Bus High
(Between display ,
Bluetooth module and radio)
10
Internal Bus Low
(Between display ,
Bluetooth module and radio)
11
Ext. Mute
(From Bluetooth Module)
12
Module GND
13
Reserved
14
Reserved
15
+ 12 V
(Battery voltage to module)
16-30
Reserved
31
USB AUX input – Left Channel
32
USB AUX input – Right Channel
33
Reserved
34
Phone AF+
(Phone Audio input from
Bluetooth module positive)
35
Reserved
36
Reserved
37
Odo Signal
38
AUX - Common
39
Reserved
40
Phone AF–
(Phone Audio input from
Bluetooth module negative)
