ELECTRICAL
17

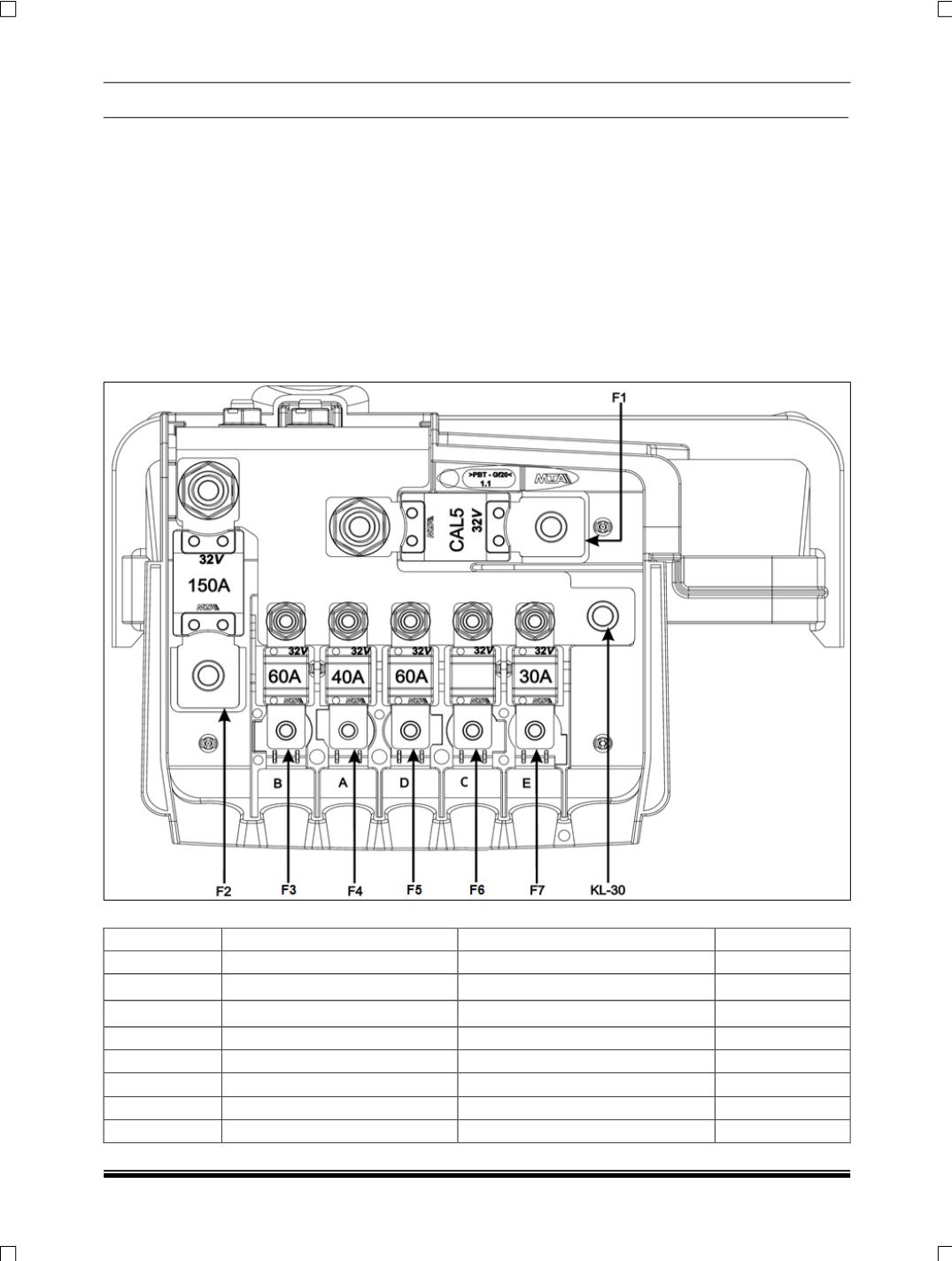

01. BATTERY MOUNTED FUSE BOX (
BDU
):
This fuse box is directly mounted on battery positive terminal. Bus-bar type construction is used. Advantages
of using Separate Battery Fuses
•
Splits the load from other equipment
•
Reduce the number of cables
•
Reduces the number of Splices
•
Reduces the risk of Thermal Incidents
•
Reduces the cost and complexity of other components e.g. if the starter circuit has a failure only the
starter will be not operate – not full vehicle failure
It consists of Powerval, megaval & minival fuses. For Details refer Top view OF BDU.
Power Val Fuse-Designed for high current protection. Ideal for starter motor & alternator protection. For
removal & refitment of fuse box/Fuse refer the fitment drg of BDU.
FUSE DETAILS:
FUSE NO
FUNCTION
FUSE DESCRIPTION
COLOUR
F1
Starter motor
FUSE_POWERVAL CAL5
BROWN
F2
Alternator
FUSE_MEGAVAL 150A
ORANGE
F3
Battery cockpit
FUSE_MIDIVAL 60A
YELLOW
F4
ABS/ESP
FUSE_MIDIVAL 40A
GREEN
F5
Ignition
FUSE_MIDIVAL 60A
YELLOW
F6
Not used
-
-
F7
Cooling fan I
FUSE_MIDIVAL 30A
ORANGE
KL-30
High current path to MDU
-
-
