ARIA

ELECTRICAL

REFITMENT

1.Fit the tweeter on A-pillar by tightening its two

mounting screws. Place the tweeter connector at

its parking position

Tightening torque for Screws -0.5 to 0.6 Kgfm

2.Connect the electrical connection to tweeter.

3.Fit the A-pillar Trim.

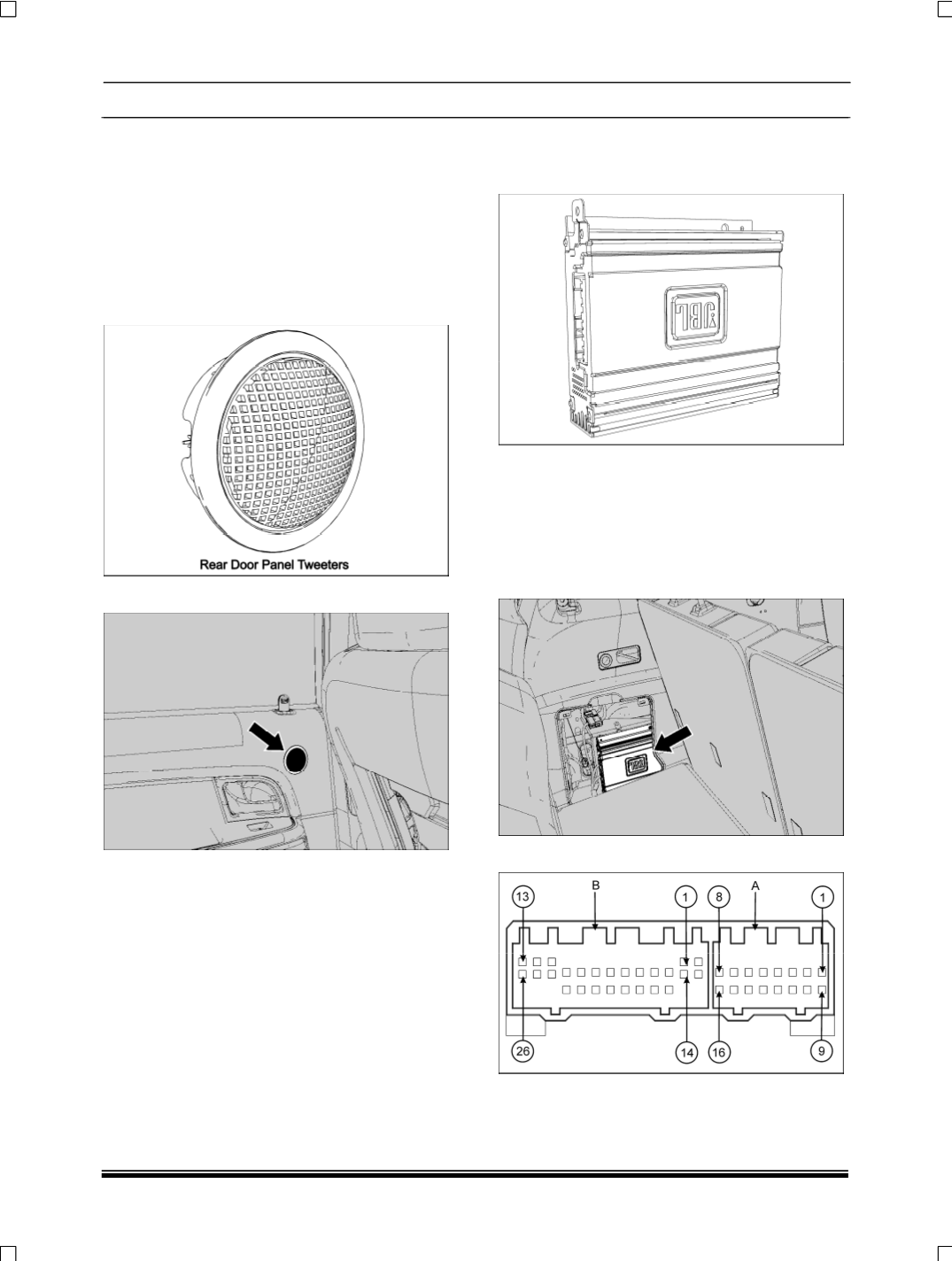

4.4.3.4.2. Rear Door Panel Tweeters:

LOCATION:

It is fitted on Rear door panel.

REMOVAL:

1. Pry out the tweeter from rear door panel.

2. Disconnect the electrical connection of tweeter.

REFITMENT

1.Connect the electrical connection of tweeter.

2.Carefully press the Tweeter into the cutout

provided on rear door panel (

Snap fitted

4.4.3.5. AUDIO AMPLIFIER:

Amplifier provides processed amplified Outputs to

all speakers, tweeter and subwoofer.

SPECIFICATIONS:

Operating voltage: 9 to 16 V

Nominal Voltage: 12V

Operating Temperature: - 20°C to +70°C

LOCATION:

Amplifier is mounted behind rear quarter trim LH.

CONNECTOR DETAILS:
