ARIA

ELECTRICAL

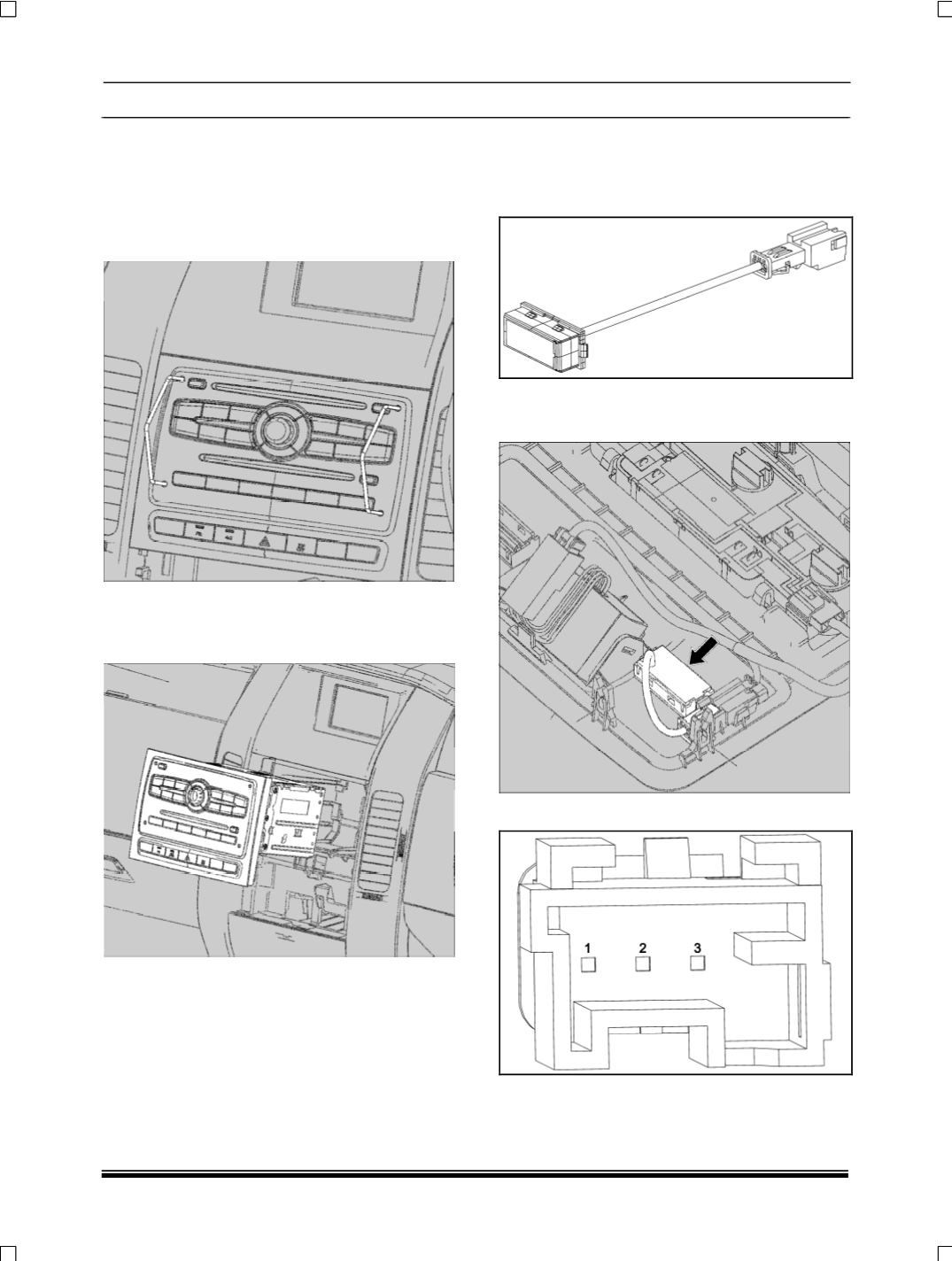

4.1.4.8. REMOVAL:

1.Insert the special tool

(Part no. 287058905401)

as shown in the below figure & pull out the music

system.

NOTE:

Make sure that there will be no scratches

on music system while removing.

2.First disconnect the electrical connection of facia

switch then radio antenna and radio.

3. Take out the music system with facia switch.

4.4.1.9 REFITMEMT:

1.Connect the electrical connection of facia switch,

radio antenna & radio.

2.Carefully fit the music system into the cutout

provided on the center finisher of dashboard.

(Snap fitted).

4.4.2. MICROPHONE:

A microphone is an acoustic-to-electric

transducer or sensor that converts sound into an

electrical signal.

4.4.2.1. LOCATION:

It is fitted on front roof console RH side.

4.4.2.2. CONNECTOR DETAILS
