ELECTRICAL
13

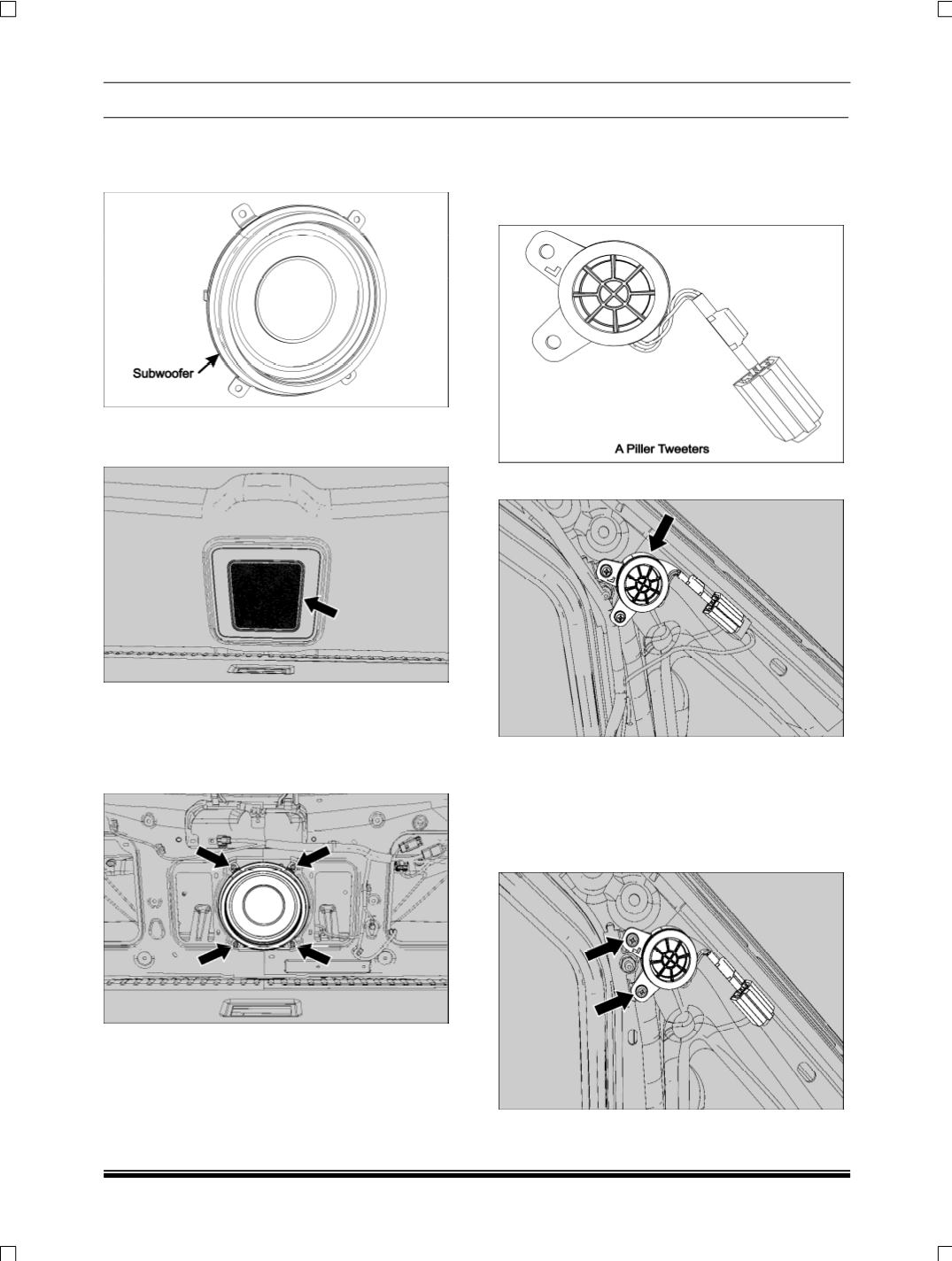

4.4.3.3. SUBWOOFER:
Subwoofer is a type of speaker which
enhances the deep bass extension.
LOCATION:
Subwoofer is mounted on tailgate door inner panel.
REMOVAL:
1.Remove the tailgate door trim (
refer body
section
).
2.Loosen and remove the four mounting screws of
subwoofer.
3.Pull out the subwoofer. Disconnect the
connection and take out the subwoofer.
REFITMENT:
Follow the reverse procedure for fitment.
4.4.3.4. TWEETER:
Tweeter is a loudspeaker designed to
produce high frequencies.
4.4.3.4.1. A Pillar Tweeters:
LOCATION:
It is fitted on A-pillar panel.
REMOVAL:
1.Remove the A-pillar trim. (
Refer body section
)
2.Disconnect the electrical connection of tweeter.
3.Loosen and remove the two mounting screws of
tweeter.
4. Take out the tweeter by removing its connector
from its parking position.
