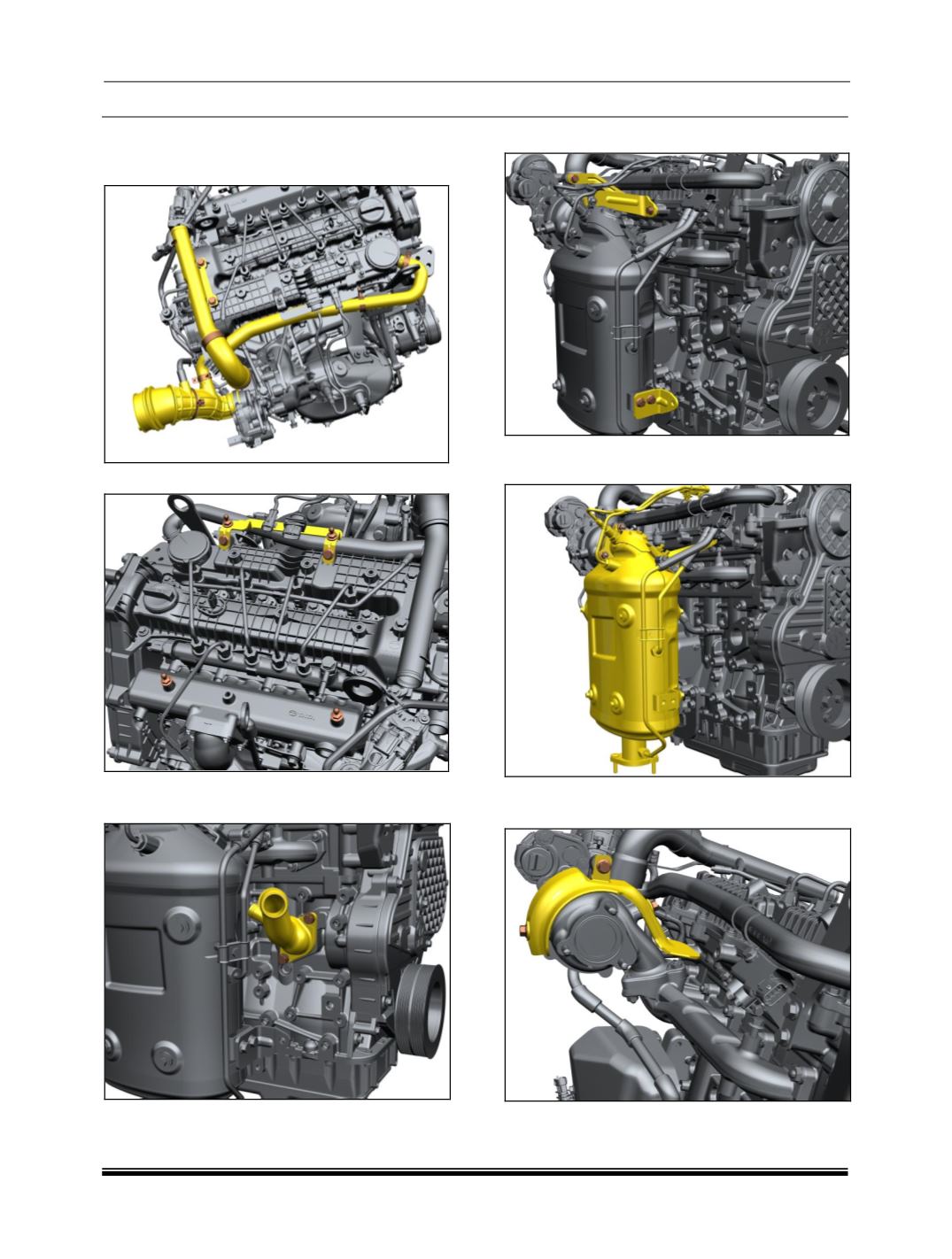

11. Remove the mounting clamps and fasteners
of the hoses connected to turbocharger and
the engine head cover.
12. Remove mounting support brackets.
13. Remove the mounting bolts and take out the
water housing elbow assembly.
14. Remove the catcon support brackets.
15. Remove the mounting fasteners and take out
the catcon assembly.
16. Remove the turbocharger heat shield and
support bracket.
