1.5L REVOTORQ ENGINE

129

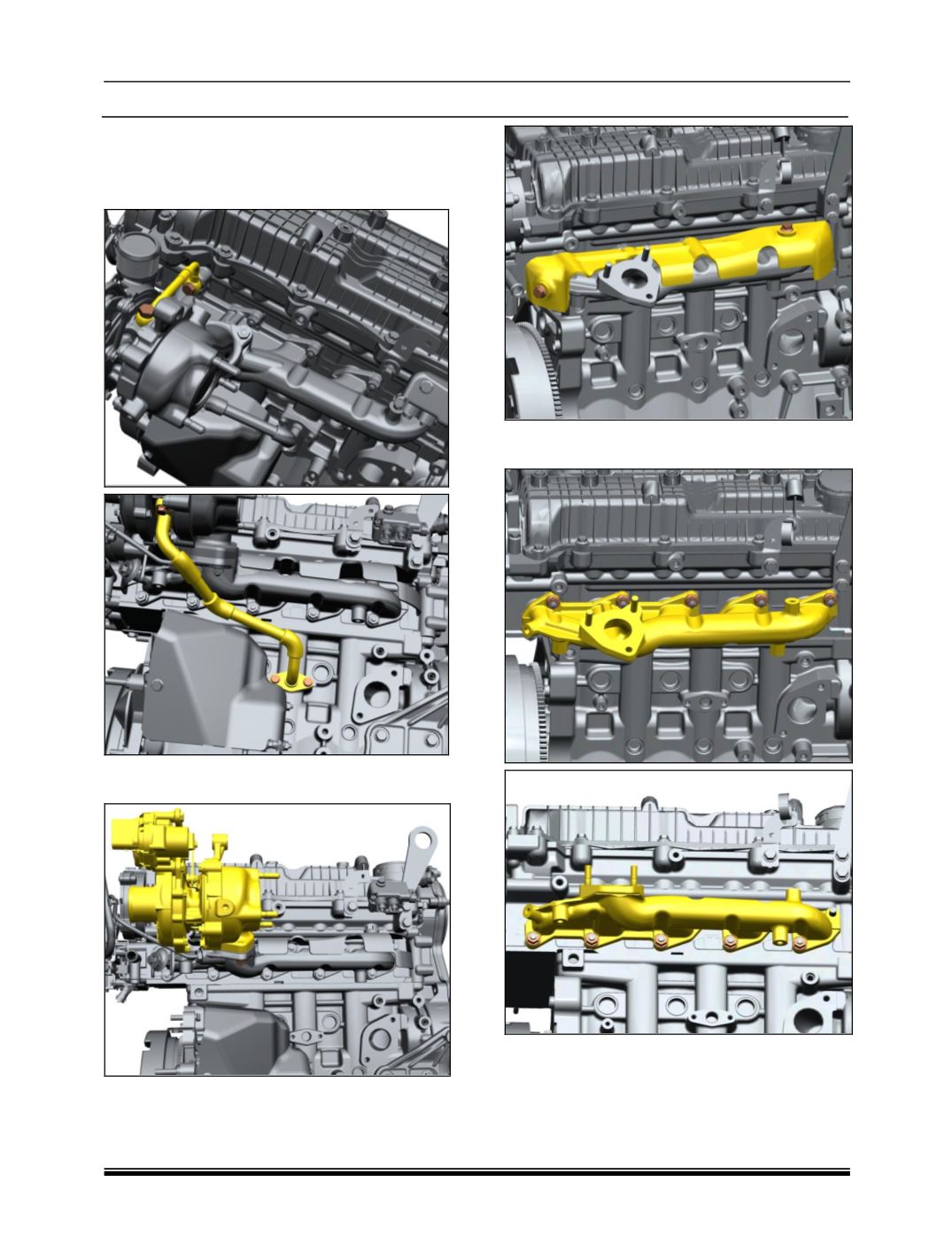

iv. REMOVAL OF EXHAUST MANIFOLD

1. Remove the mounting fasteners of the

lubrication lines connected to the turbocharger

and remove them.

2. Loosen and remove the mounting fasteners

and take out the turbo charger assembly.

3. Loosen and remove the mounting fasteners

and take out the exhaust manifold heat shield.

4. Remove the mounting fasteners and take out

the exhaust manifold
