1.5L REVOTORQ ENGINE
128
NOTE
Cover the opening of the fuel rail and fuel
injectors with suitable plugs.
After removing the HP pipes cover the
injectors and fuel lines opening with suitable
caps.
Do not reuse the HP pipes once removed;
use new HP pipes at the time of assembly.
Remove Wiring harness connector of
injectors.

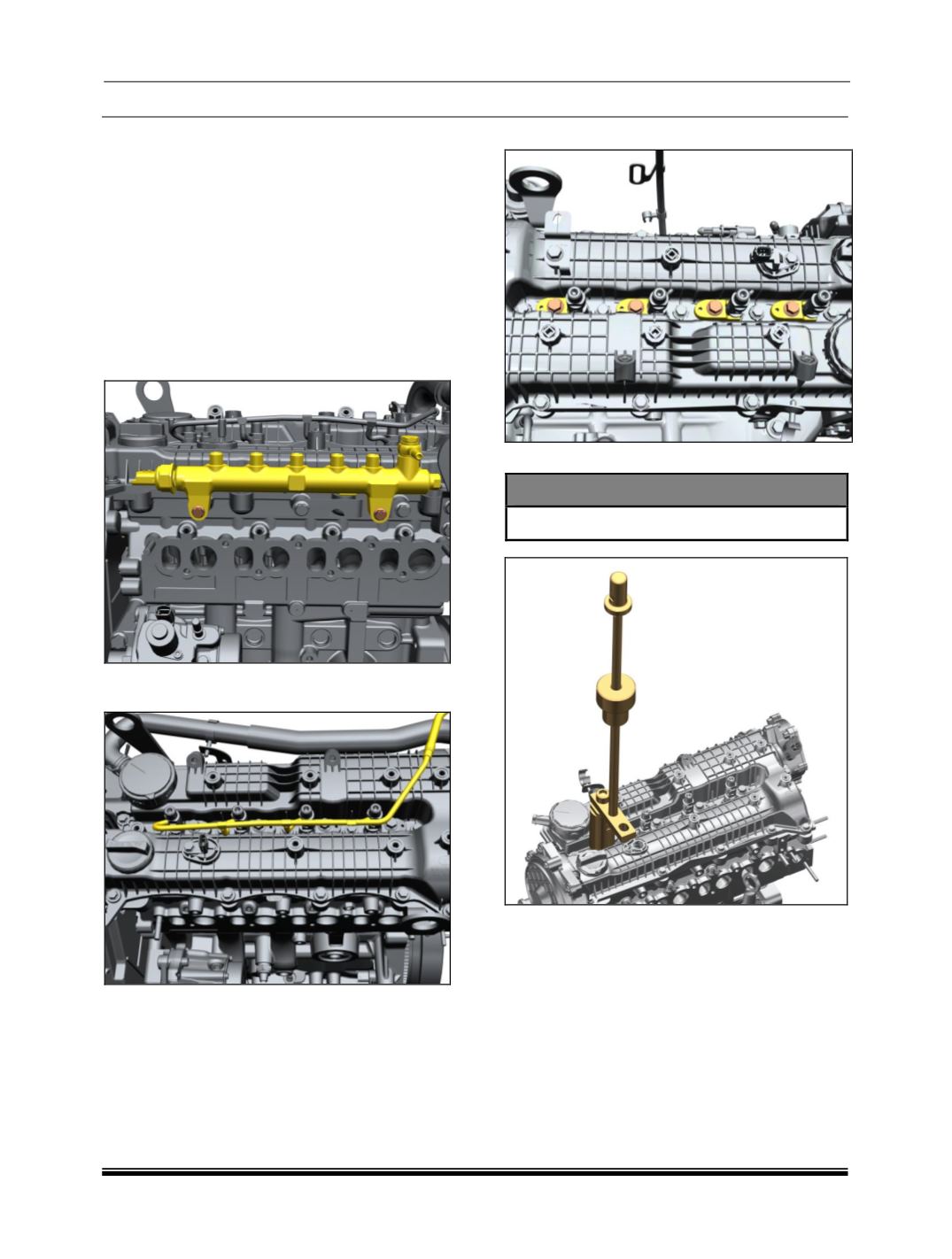

8. Remove the mounting bolts of the fuel rail and
take it out.
9. Remove the back leak hose connected to the
fuel injector.
10.Remove the injector clamps.
11.Remove the injectors using special tool.
SPECIAL TOOL
Injector Puller -: 5422 5890 01 02
