1.5L REVOTORQ ENGINE
119

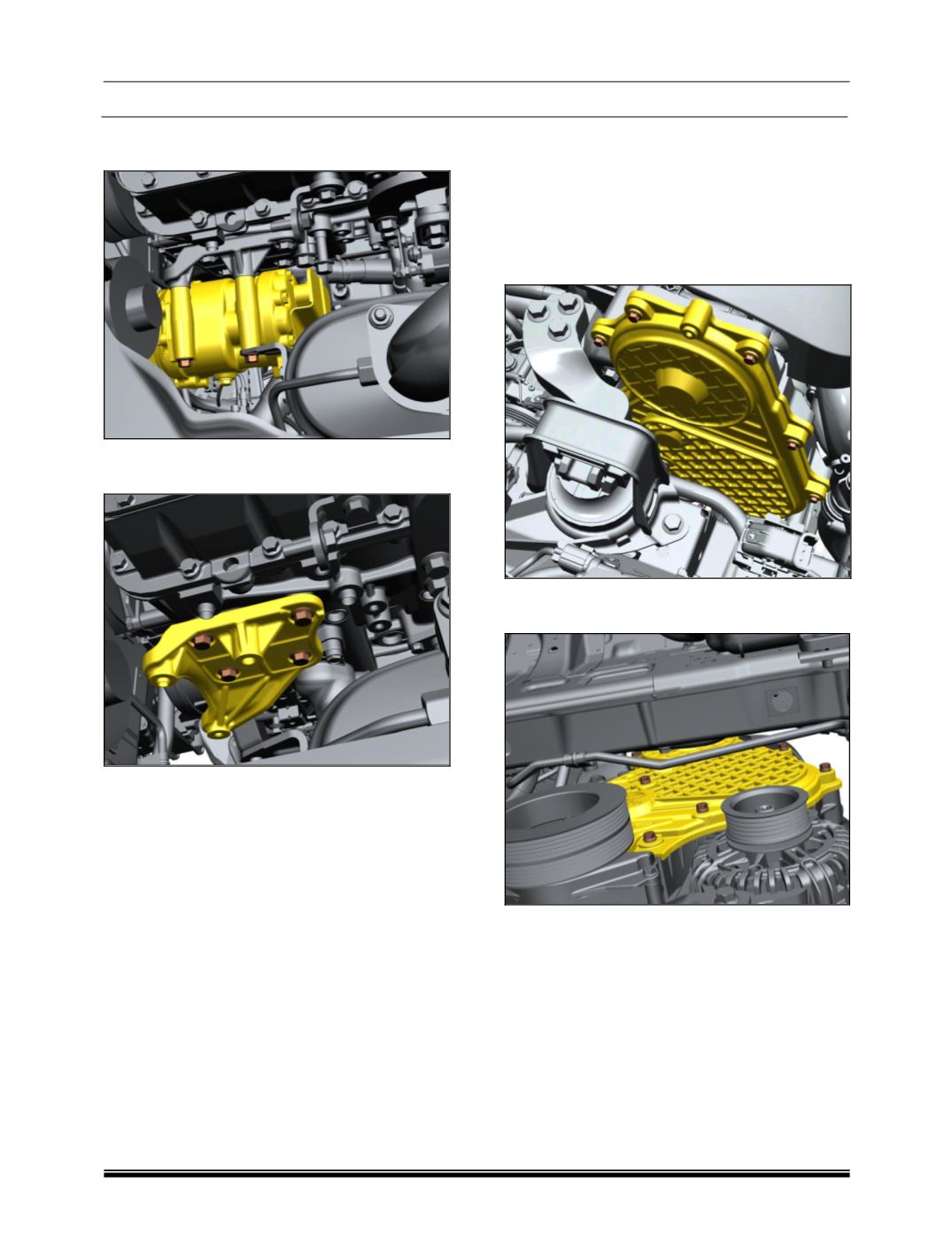

4. Loosen and remove the three mounting bolt
and take out the compressor.
5. Loosen and remove the mounting bolts and
take out the compressor support bracket.
FITMENT
Follow the reverse order of removal procedure.
L. HIGH PRESSURE PUMP REMOVAL AND
REFITMENT
REMOVAL
1. Place the vehicle on the two post lift and
engage the parking brake.
2. Remove the top timing cover mounting bolts
accessible from the bonnet side.
3. Remove the top timing cover mounting bolts
accessible from below the vehicle.
4. Take the vehicle down and remove the top
timing cover from the top.
