1.5L REVOTORQ ENGINE
123

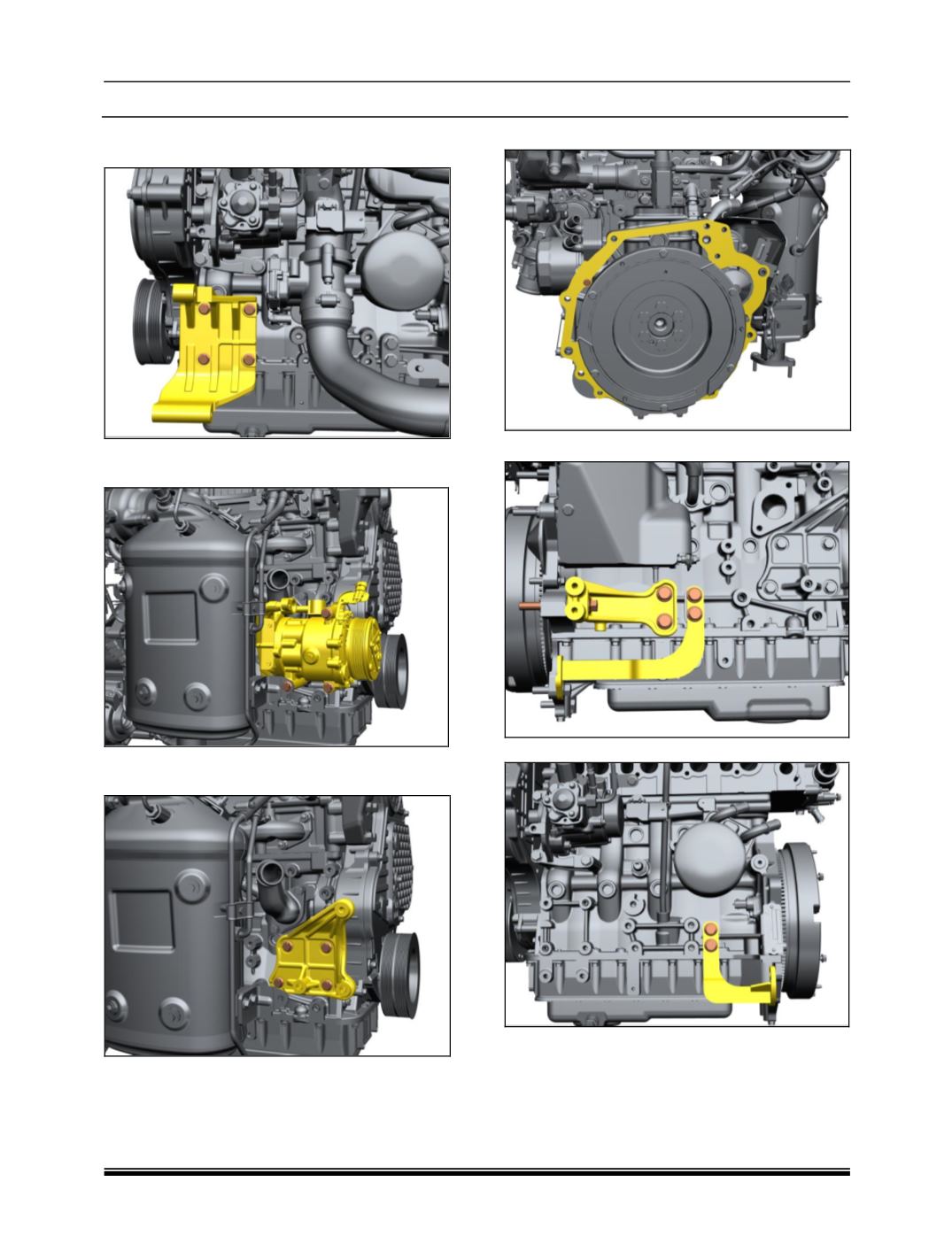

6. Remove the mounting bolts of the alternator
support bracket and remove the bracket.
7. Remove the mounting bolts of the compressor
assembly and take it out.
8. Remove the mounting bolts of the compressor
support bracket and remove the bracket.
9. Remove flywheel back plate.
10. Remove stiffening bracket on both sides.
