1.5L REVOTORQ ENGINE
116

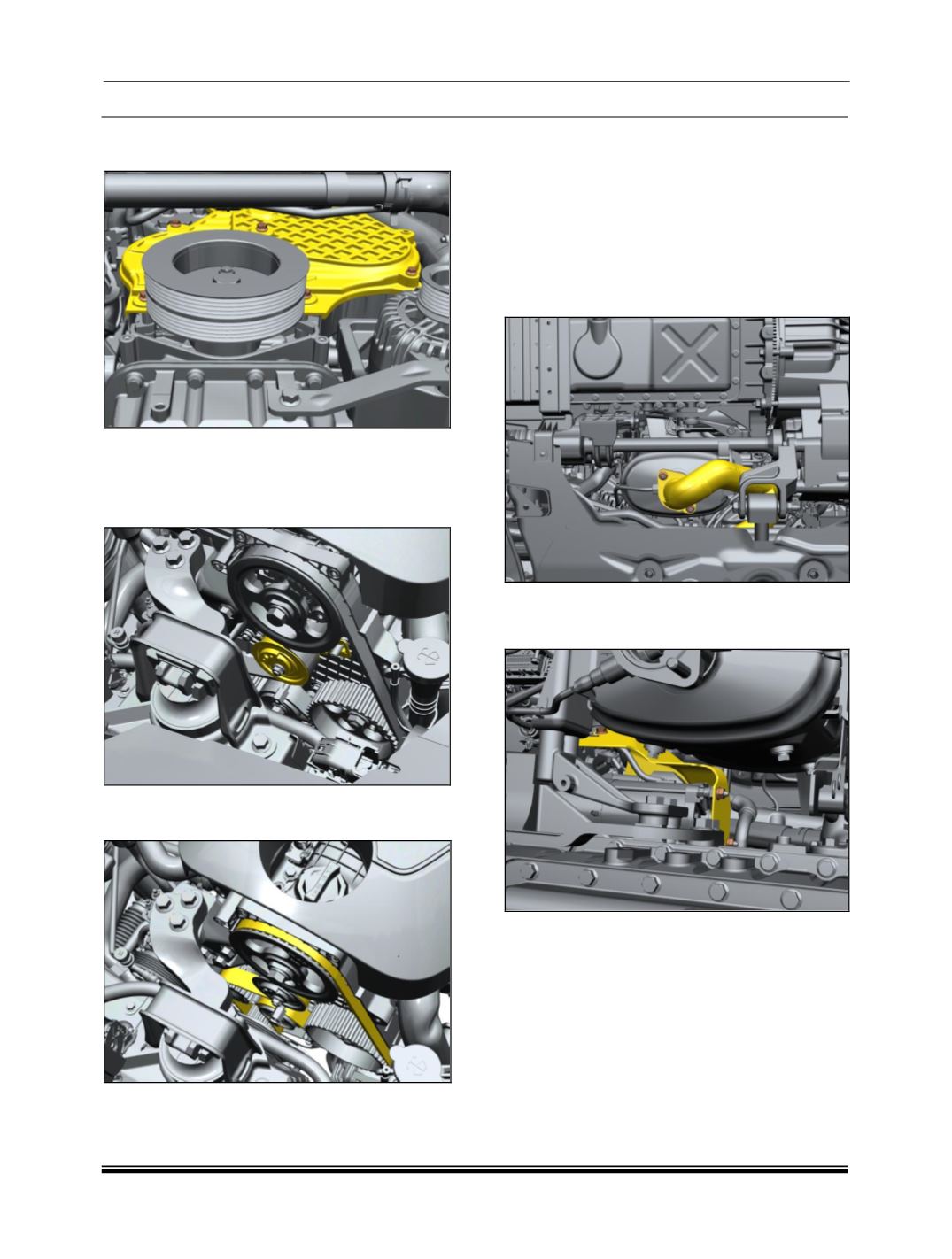

8. Remove the top timing cover mounting bolts
accessible from below the vehicle.
9. Take the vehicle down and remove the top
timing cover from the top.
10.Relieve the tension by adjusting the auto
tensioner.
11.Take out the belt, inspect and replace if
necessary.
FITMENT
Follow the reverse order of removal procedure.
I. STARTER
MOTOR
REMOVAL
AND
REFITMENT
REMOVAL
1. Place the vehicle on the two post lift and
engage the parking brake.
2. Disconnect the negative (-) cable of the
battery.
3. Remove the mounting bolts of the exhaust
pipe front and disconnect the pipe.
4. Lift the vehicle and remove the mounting
fasteners of the starter motor shield and take
out the shield.
