1.5L REVOTORQ ENGINE
114

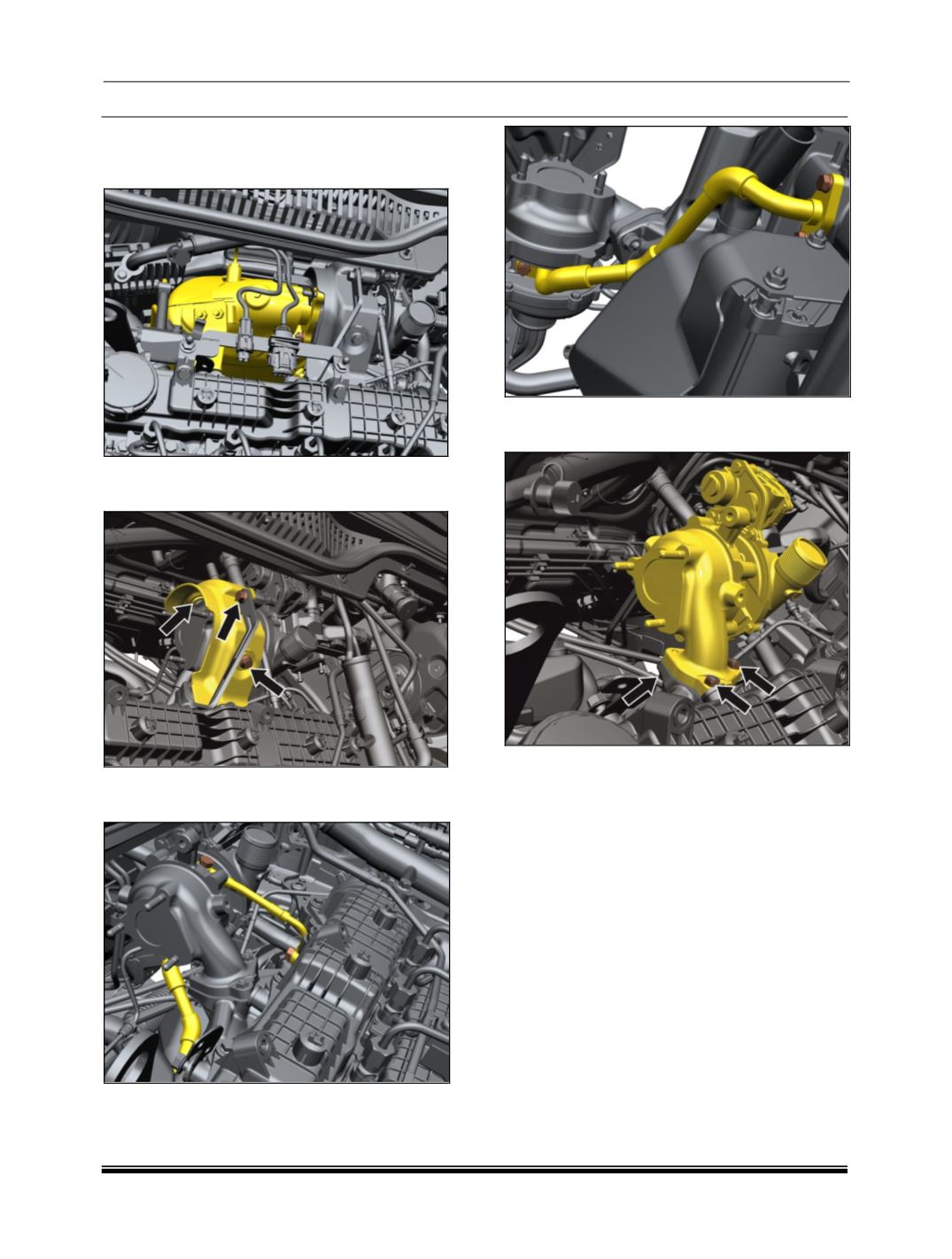

7. Loosen and remove the mounting fasteners
and disconnect the catcon assembly from the
turbocharger.
8. Remove the heat shield mounting fasteners
on turbocharger.
9. Loosen and remove the inlet and outlet oil
feeder line connection of the turbo charger.
10. Remove the turbocharger mounting fasteners
on the exhaust manifold.
FITMENT
Follow the reverse order of removal procedure.
