1.5L REVOTORQ ENGINE
115

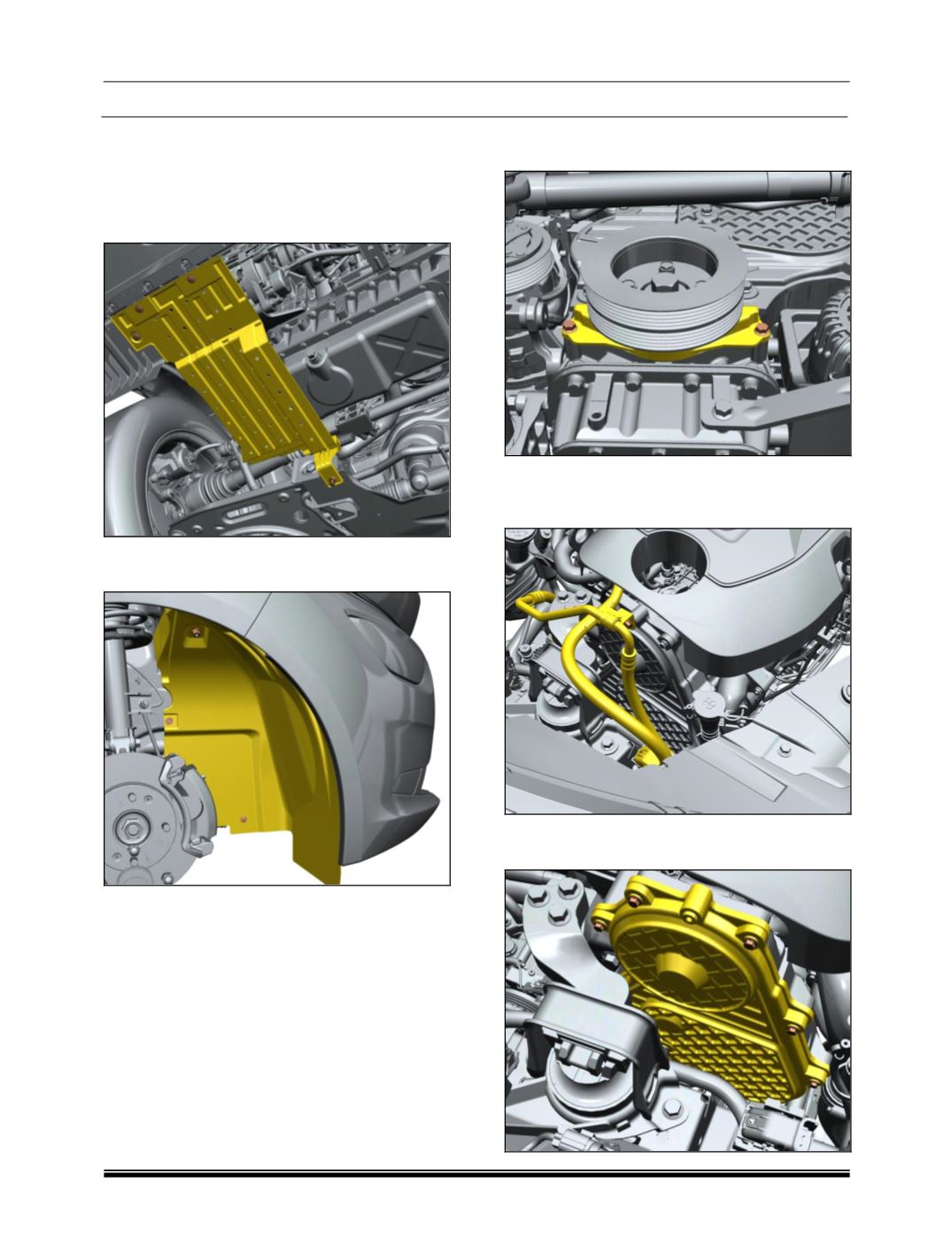

H. TIMING BELT REMOVAL AND REFITMENT
1. Place the vehicle on the two post lift and
engage the parking brake.
2. Remove the RH side splash guard.
(For
removal procedures refer body section).
3. Remove the RH wheel arch.
(For removal
procedures refer body section).
4. Remove the alternator and compressor belts.
(For procedure refer compressor and
alternator belt replacement).
5. Remove the mounting bolts and take out the
bottom timing cover.
6. Remove the mounting bracket fastener and set
aside refrigerant line and harness on mounting
bracket.
7. Remove the top timing cover mounting bolts
accessible from the bonnet side.
