REAR BRAKE DRUM BEARING REMOVAL

.

Fit the special tool part no (2871 5890 4202) to

the brake drum and pry out the bearing using

press after removing the circlip over it.

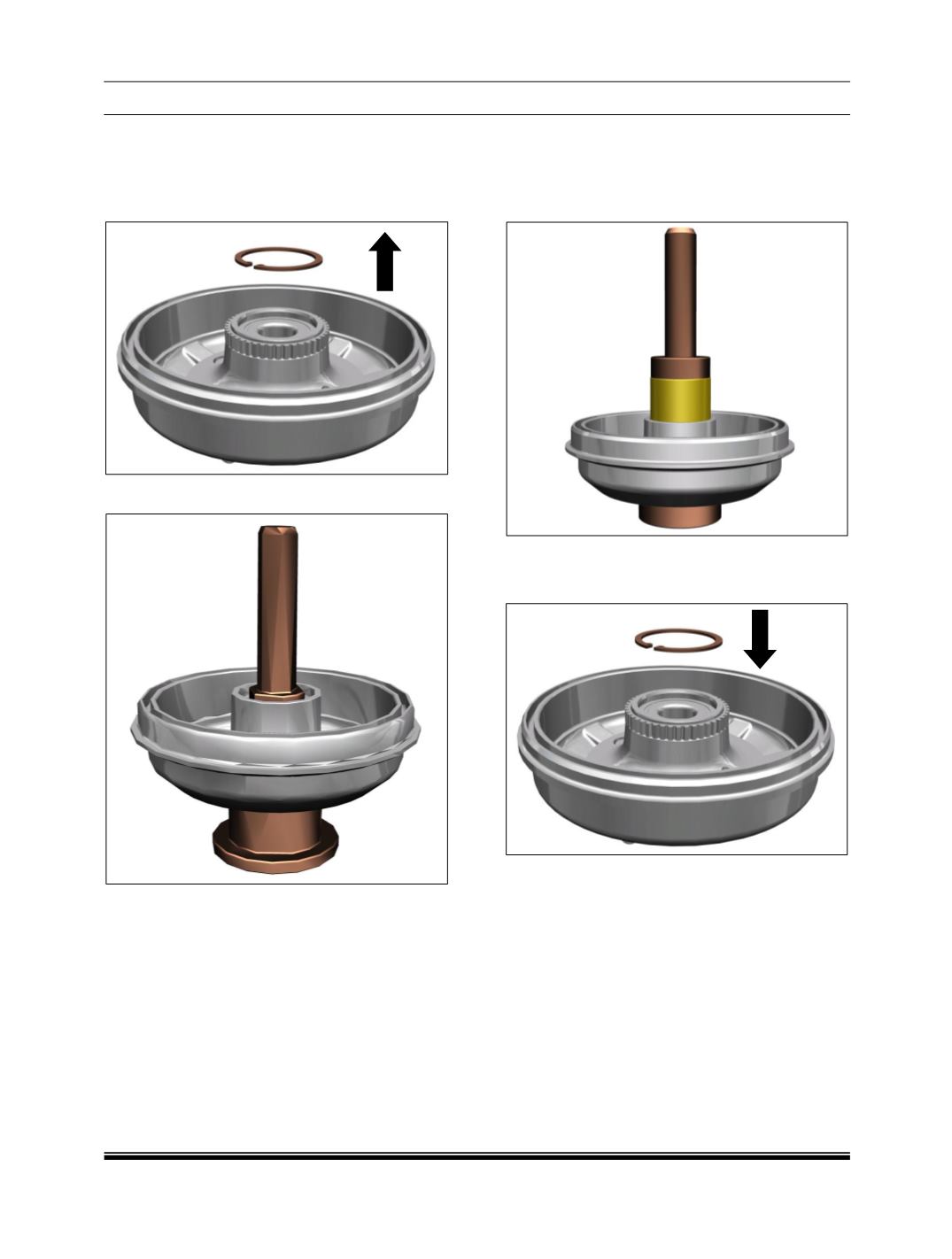

FIG. 71a

FIG. 71b

CAUTION:

Bearing removed from brake drum should

not be

reused again.

10. REAR BRAKE DRUM BEARING FITMENT

Insert the new bearing to the brake drum using

the bearing installer special tool part no (2871

5890 4201) as shown in the Figure.

FIG. 72

10a. Fit the circlip

FIG. 73
