TIAGO

SUSPENSION



INSTALLATION:

1.Carry out the above step in reverse order for its

assembly.

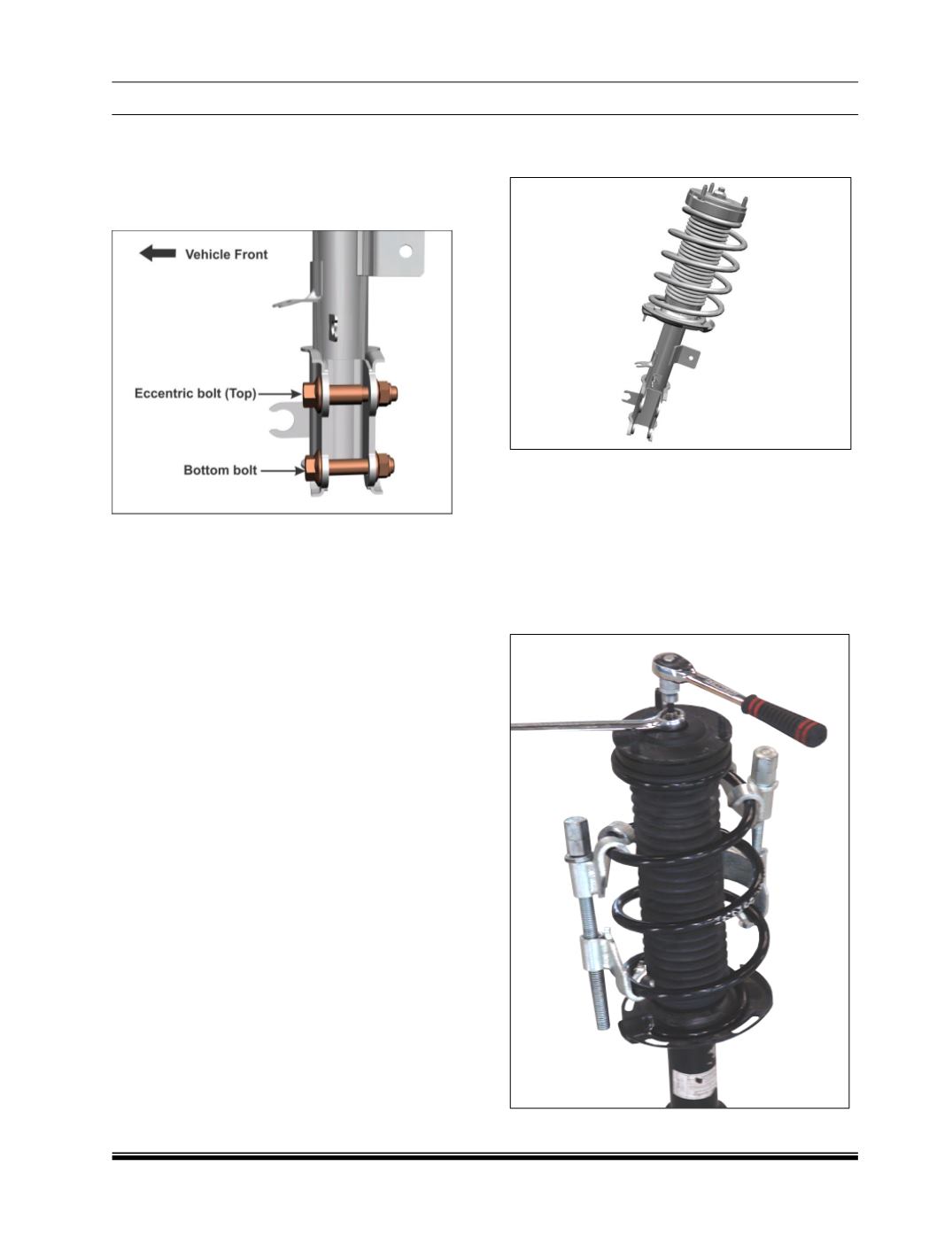

2.Fit bolts and nuts as shown in Figure 13.

FIG. 13

NOTE:

First tighten top eccentric bolt and then the bottom

mounting bolt.

1.Tighten all bolts and nuts to specified torque.

2.Apply ADH thread locker wicking grade

ANABOND 124 at nut end and bolt thread. En-

sure that the threads are free from oil/grease.

CAUTION:

1.Ensure that brake hose does not damage during

installation.

2.Strut having the same color code mark on the

spring should be assembled on the left hand and

right hand side.

5.7.2 DISASSEMBLY AND ASSEMBLY OF

FRONT STRUT:

FIG. 14



DISASSEMBLY:

Compress the spring with spring Compression tool

part No.2702 5890 3202 until the spring tension is

released (i.e. becomes free in its seating

place).Hold the piston rod by Allen key (A/F: 6 mm)

to stop piston rod rotation during loosening of nut.

Unscrew nut (1) and dismantle the parts.

FIG. 15
