SUSPENSION
20

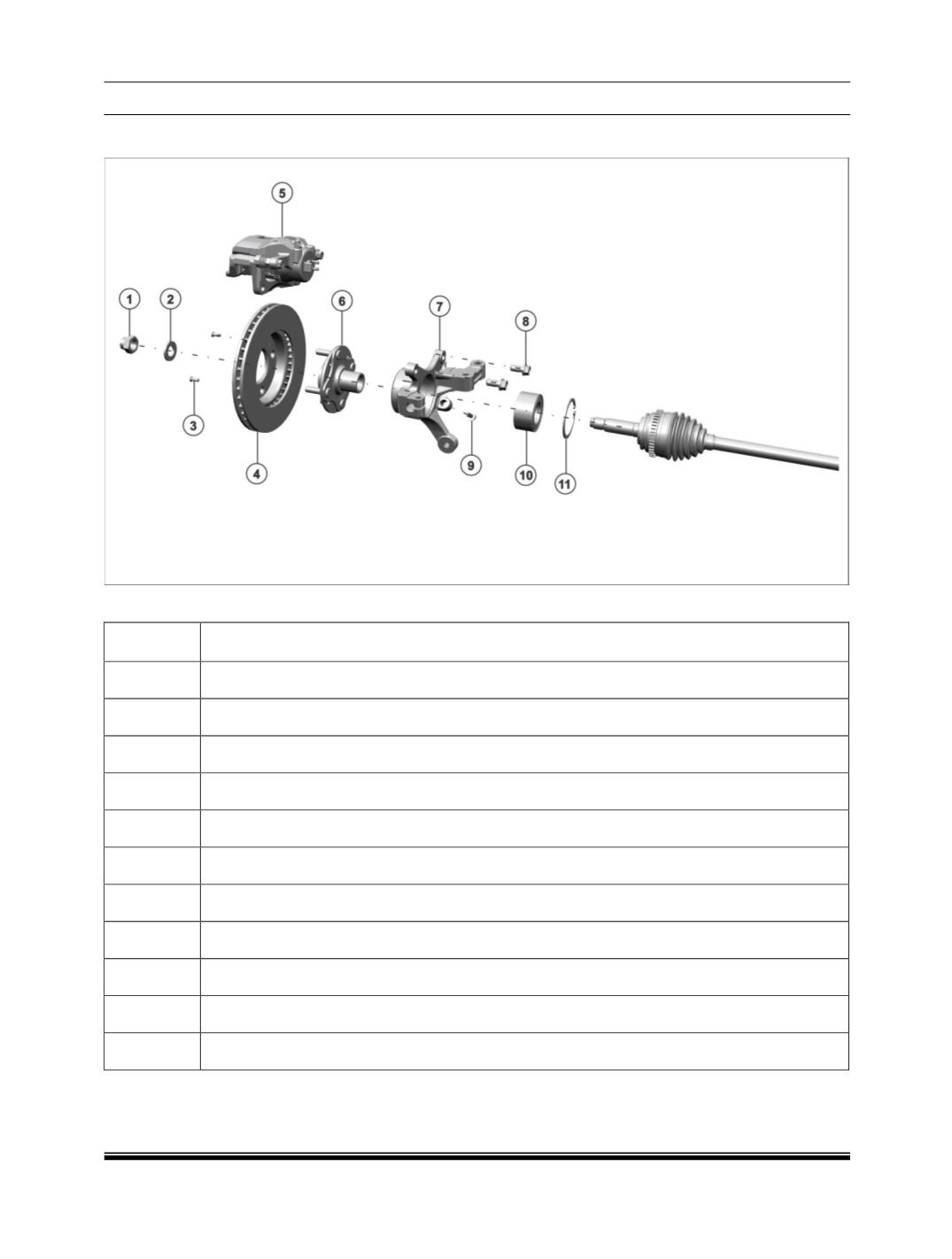

5.6.4. FRONT AXLE ASSEMBLY EXPLODED VIEW
FIG. 7
SR NO.
DESCRIPTION
01
LOCK NUT
02
WASHER
03
CR CSK SCR M6X16
04
FRONT BRAKE DISC
05
ASSY CALIPER
06
FRONT HUB
07
STEERING KNUCKLE
08
HEX SCREW M12X30
09
H/FL SCREW M6X14 TS17130-8.8-SS8451S2-Y (ABS Sensor Mounting)
10
ANGULAR CONTACT BALL BEARING
11
INTERNAL CIRCLIP
