1.05L REVOTORQ ENGINE

105

3.8 ENGINE OVERHAULING :

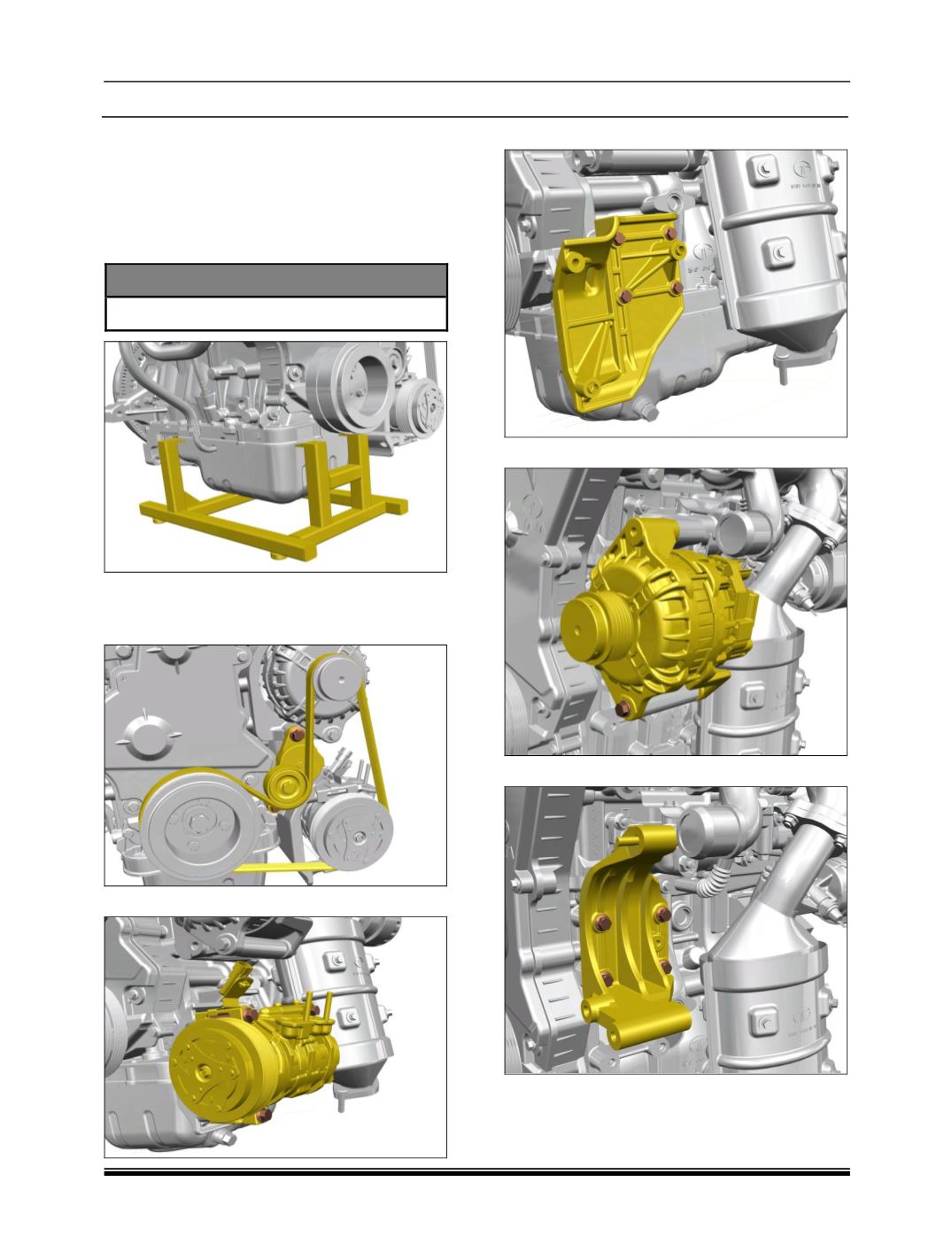

A. ENGINE DIS-ASSEMBLY :

i. ON OVERHAUL STAND :

1. After removing the engine assembly from the

vehicle, keep that engine on engine support

stand.

SPECIAL TOOL



Engine Support Stand -:

5401 5890 24 01

2. Loosen the belt tensioner bolt on idler /

tensioner.

3. Remove the belt from the pulleys.

4. Remove AC Compressor.

5. Remove AC Compressor mounting bracket.

6. Remove Alternator.

7. Remove alternator mounting bracket.
