1.05L REVOTORQ ENGINE
100

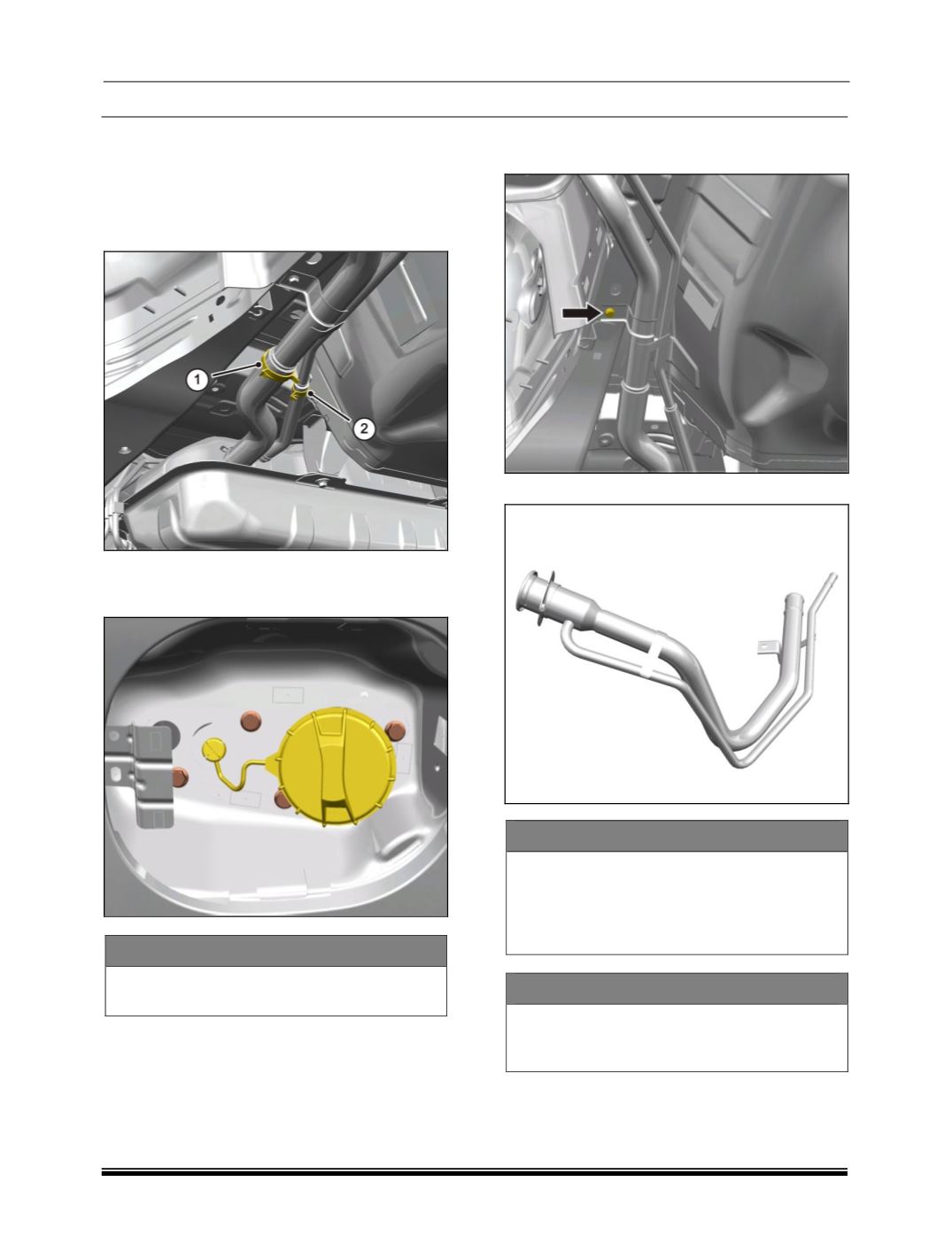

B. Fuel Filler :
Removal :
1. Refer precautions and relieve fuel pressure.
2. Press spring clips for fuel filler hose and
breather pipe (1) and (2) respectively and pull
out from tank end.
3. Open the fuel flap, remove the filler cap and
then loosen and remove fuel filler mounting
hex flange screws.
INSPECTION
Check if dust has blocked the 2 way cap,
change cap if found defective.
4. Loosen and remove fuel filler pipe clamp
bolts.
5. Take out fuel filler assembly from bode shell.
WARNING
A small amount of fuel may be released
after fuel lines are disconnected. To avoid
the change of injury, cover the pipe to be
disconnected with cotton cloth. Do not use
cotton waste.
CAUTION
To avoid damage to vapour hoses while
disconnecting, slide back the clamps then
twist the lines as you pull.
Fitment :
Follow the reverse order of removal for
fitment.
