Fitment:
Follow the reverse order of removal for
fitment.
NOTE

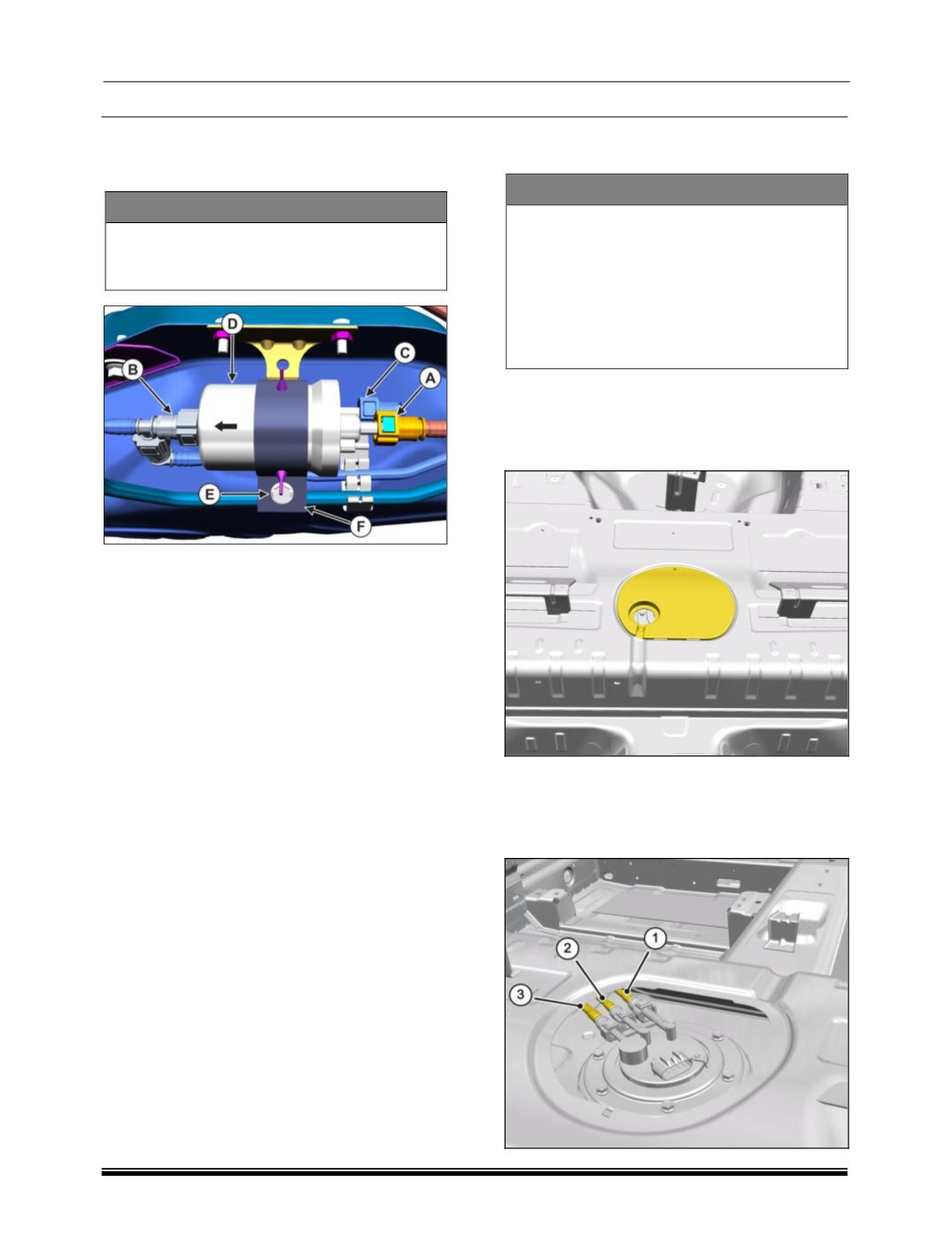

Orientation of Pressure regulator should be
Arrows towards Delivery Line & vehicle
Front.
A. Return Line
B. Delivery Line + Pressure Regulator Inlet
C. Dead Plug
D. Pressure Regulator
E. Mounting Screw
F. Mounting Bracket
D. Tank Unit:
Removal:
CAUTION
Unless replacement is necessary, Tank
unit, Fuel level sensor should not be
removed from the tank since the rubber
parts i.e. gasket, seals etc. may harden
when exposed to air and light.
Never apply an excessive force to the tank
unit nipple or lead wire. This may result in
bent or poor contact.
1. Fold the 2nd row RH seat and somersault it to
access the in tank pump cut out.
2. Lift the carpet with foam at the cutout.
3. Loosen and remove the screw of the cutout
cover and remove it.
4. Disconnect the connector and then
disconnect the fuel lines.i.e. Return line (From
pressure regulator to tank unit (1)), Delivery
line (From tank unit to pressure regulator (2)),
Return line (From tank unit to engine (3)).
