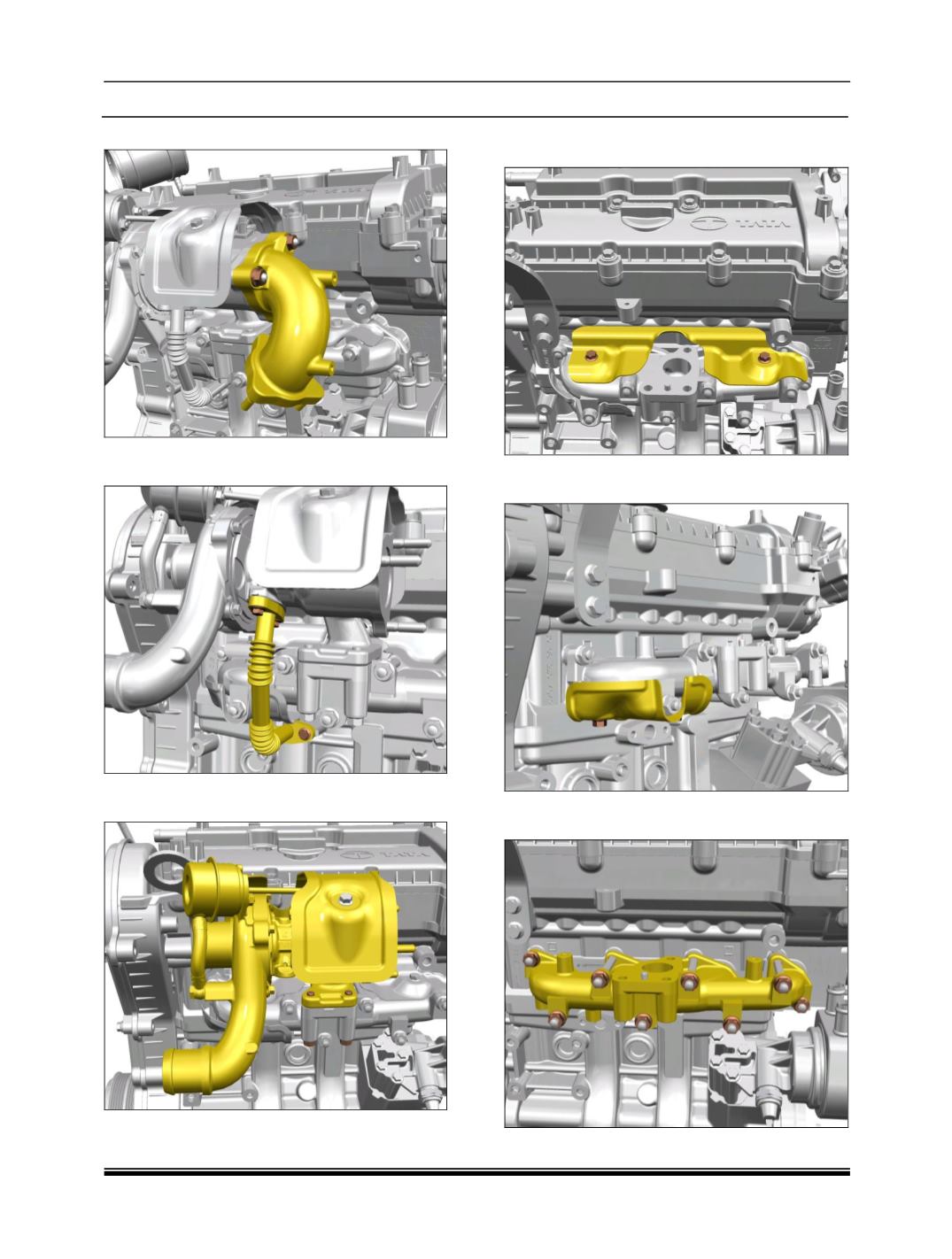

4. Remove exhaust elbow with gasket.
5. Remove TC oil return line assembly with
gaskets.
6. Remove Turbocharger with gasket and heat
shield.
7. Remove top heat shield from exhaust
manifold.
8. Remove bottom heat shield from exhaust
manifold.
9. Remove exhaust manifold from cylinder block
with gasket.
