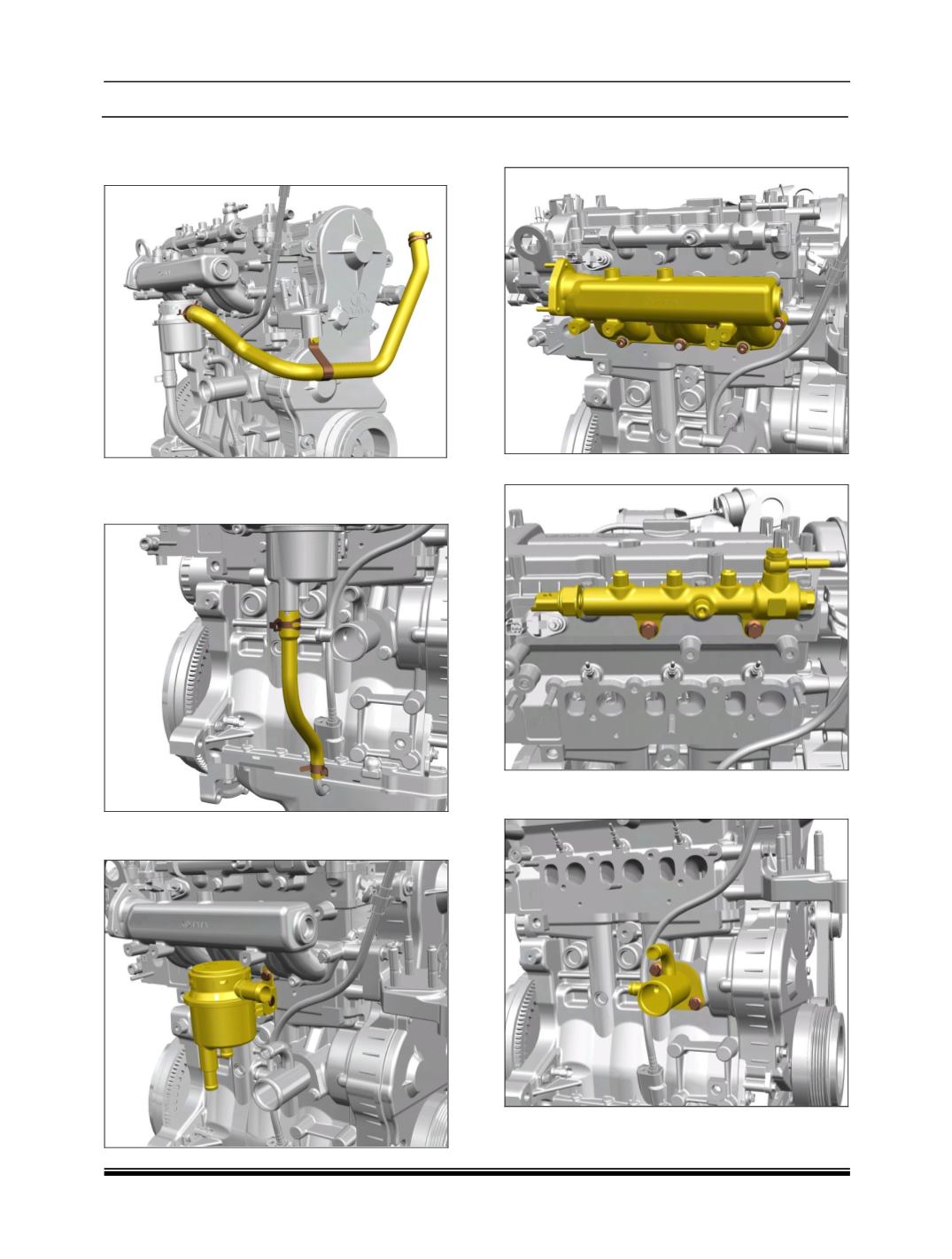

7. Remove the spring band clamp and take out
the rubber hose between duct and oil mist
separator.
8. Remove the spring band clamp and take out
the rubber hose between oil sump and oil mist
separator.
9. Remove the oil mist separator along with the
bracket.
10. Remove the intake manifold along with
gasket.
11. Remove the fuel rail assembly.
12. Remove water inlet elbow assembly with
gasket.
