1.05L REVOTORQ ENGINE
101

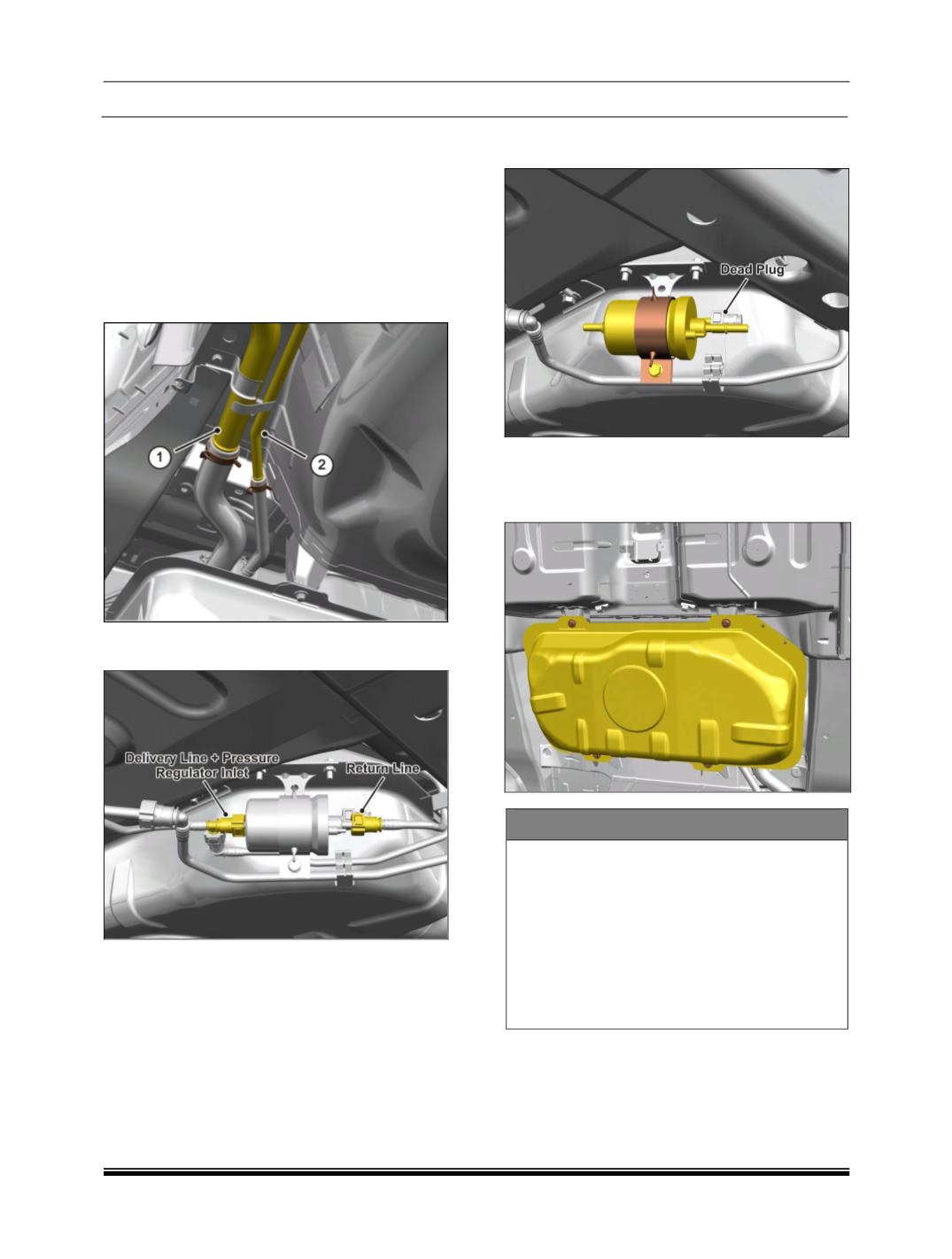

C. Fuel Tank :
Removal :
1. Place the vehicle in a 2 post lift.
2. Disconnect the electrical connections of the
in-tank pump and the fuel lines.
3. Relieve the Pressure in the System by
opening the Fuel Filler Cap.
4. Raise the vehicle.
5. Disconnect the fuel filler hose (1) and
breather hose (2).
6. Remove the Quick connector of return line
and delivery line.
7. Remove the mounting screw and take out the
pressure regulator from mounting bracket.
8. Remove the Dead Plug.
9. Support the fuel tank from below.
10. Remove the mounting bolts and lower the
tank carefully.
INSPECTION
Check all hoses and pipes connected to
fuel tank for leaks, loose connections,
deterioration or damage. Replace if
necessary.
Check fuel pump and fuel level gauge
gaskets for leaks, cracks etc. Replace if
necessary.
Visually inspect fuel tank for leaks and
damage. Replace if necessary.
