1.05L REVOTORQ ENGINE
108

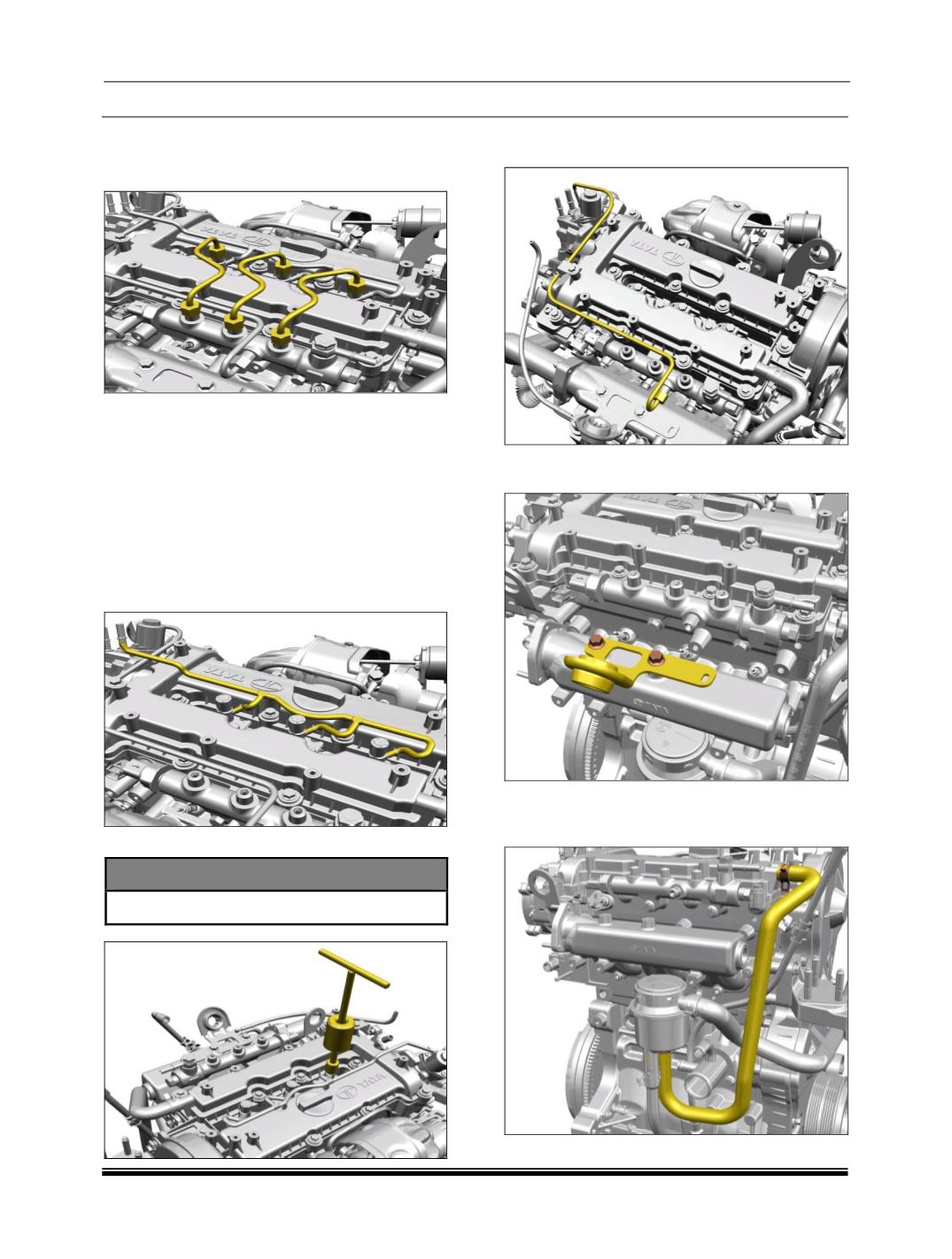

ii. REMOVAL OF INTAKE MANIFOLD :
1. Loosen & remove HP pipes connected
between the common rail and injectors.
Note :
After removing the HP pipes cover the
injectors and fuel lines opening with suitable
caps.
Do not reuse the HP pipes once removed;
use new HP pipes at the time of assembly.
Remove Wiring harness connector of
injectors.
2. Disconnect the injector back leak tube and
cover openings with suitable caps.
3. Remove the injectors using special tool.
SPECIAL TOOL
Injector Puller -: 2719 5890 07 02
4. Loosen and remove the cap connector of the
HP line at the common rail end.
5. Remove Air Filter mounting bracket from
intake manifold.
6. Remove the spring band clamp and take out
the rubber hose between cylinder head cover
and oil mist separator.
