The specified resistance values and calibration details of the Tank unit fuel gauge are given below:
Float Position
Full
-
-
Half
-
Empty
High
Empty Low
Usable fuel
volume in liters
58
48.5
39
30
21
12
3
Height in mm
152
120
99
80
61
40.5
20.5
Resistance
value in Ohms
8
32
51
67
83
103
126
Tolerance in
Ohms
± 2
± 4
± 4
± 2
± 4
± 2
± 2

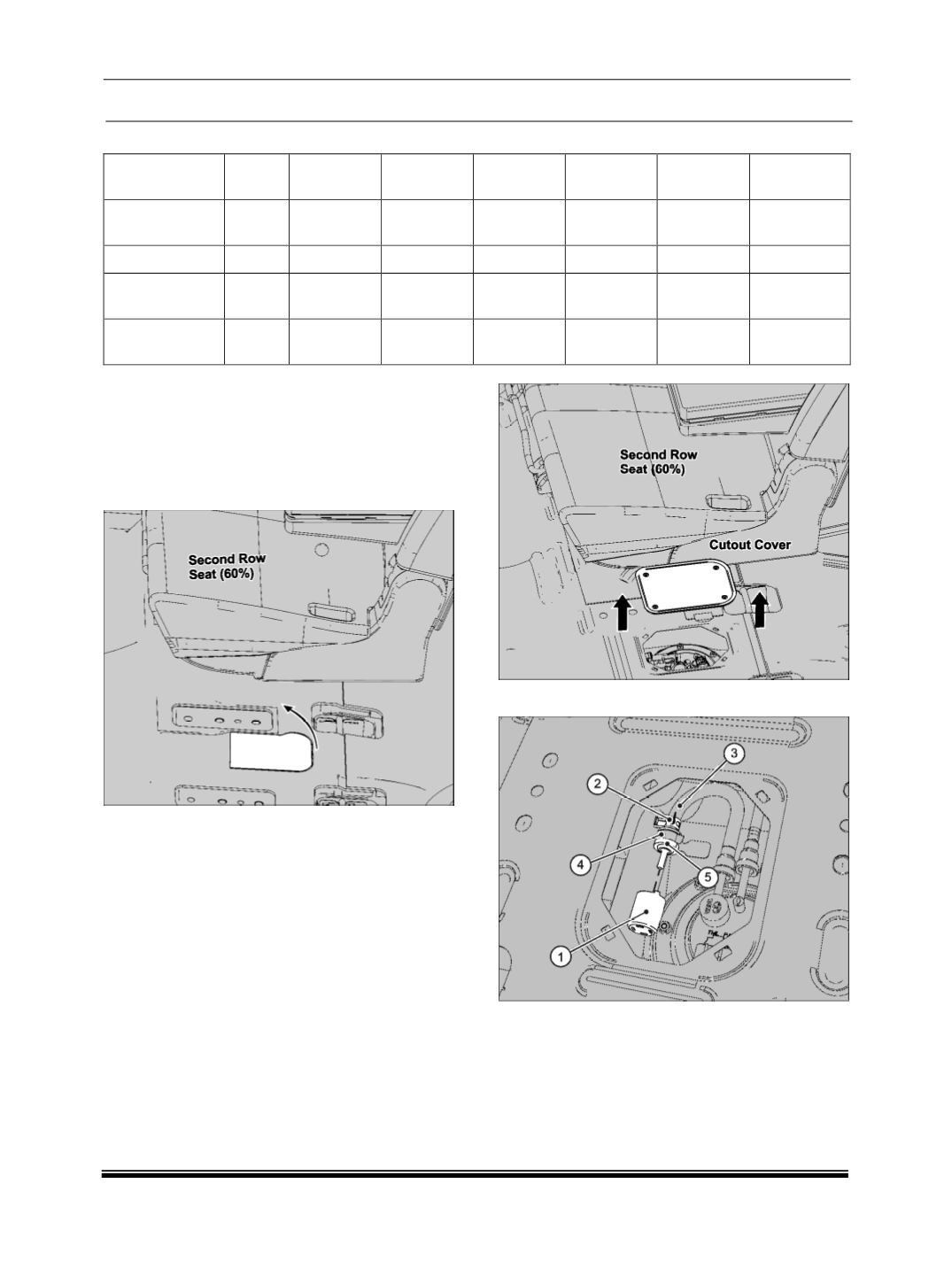

E. TANK PRESSURE VALVE (TPV)
REMOVAL
1. Fold the 2
nd
row RH Seat and somersault it to
access the in tank pump cut out.
2. Lift the carpet with foam (1) at the cutout.
3. Loosen and remove the four screws of the cutout
cover and remove it.
4. Remove the TPV protection cap (1).
5. Loosen the clamp (2) and disconnect the pipe (3).
6. Remove the TPV (5) from the clamp (4).
