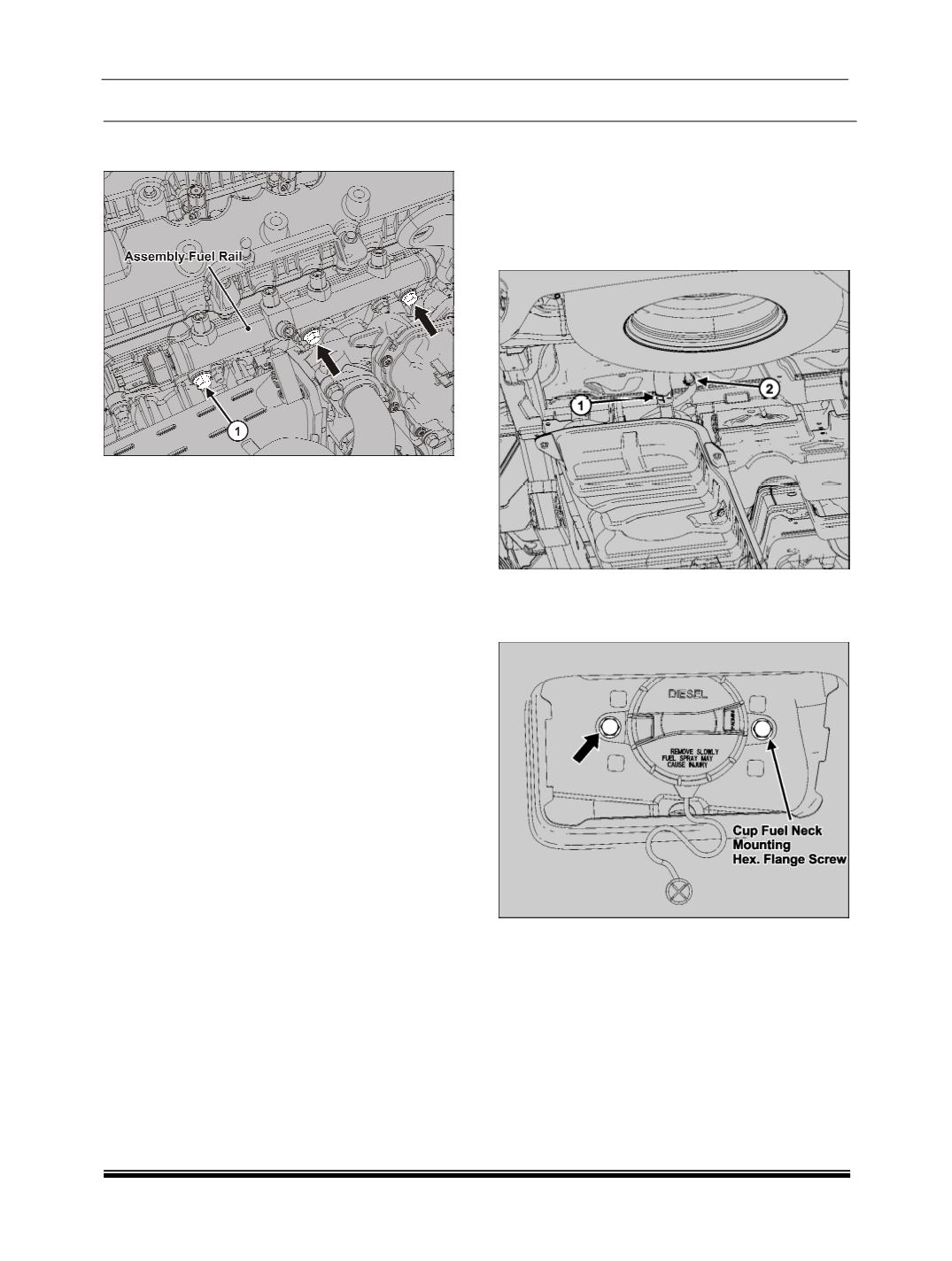

9. Loosen & remove fuel rail mounting hex flange

screw

(1).

10.Take out the assembly fuel rail.

B. FUEL FILLER ASSEMBLY

REMOVAL

1. Refer precautions and relive fuel pressure.

2. Press spring clips for fuel filler hose & breather

pipe (1) & (2) respectively & pull out from tank

end.

3. Open the fuel flap, remove the filler cap and then

loosen & remove fuel filler mounting hex flange

bolts.

INSPECTION

Check if dust has blocked the 2 way cap, change

cap if found defective.
