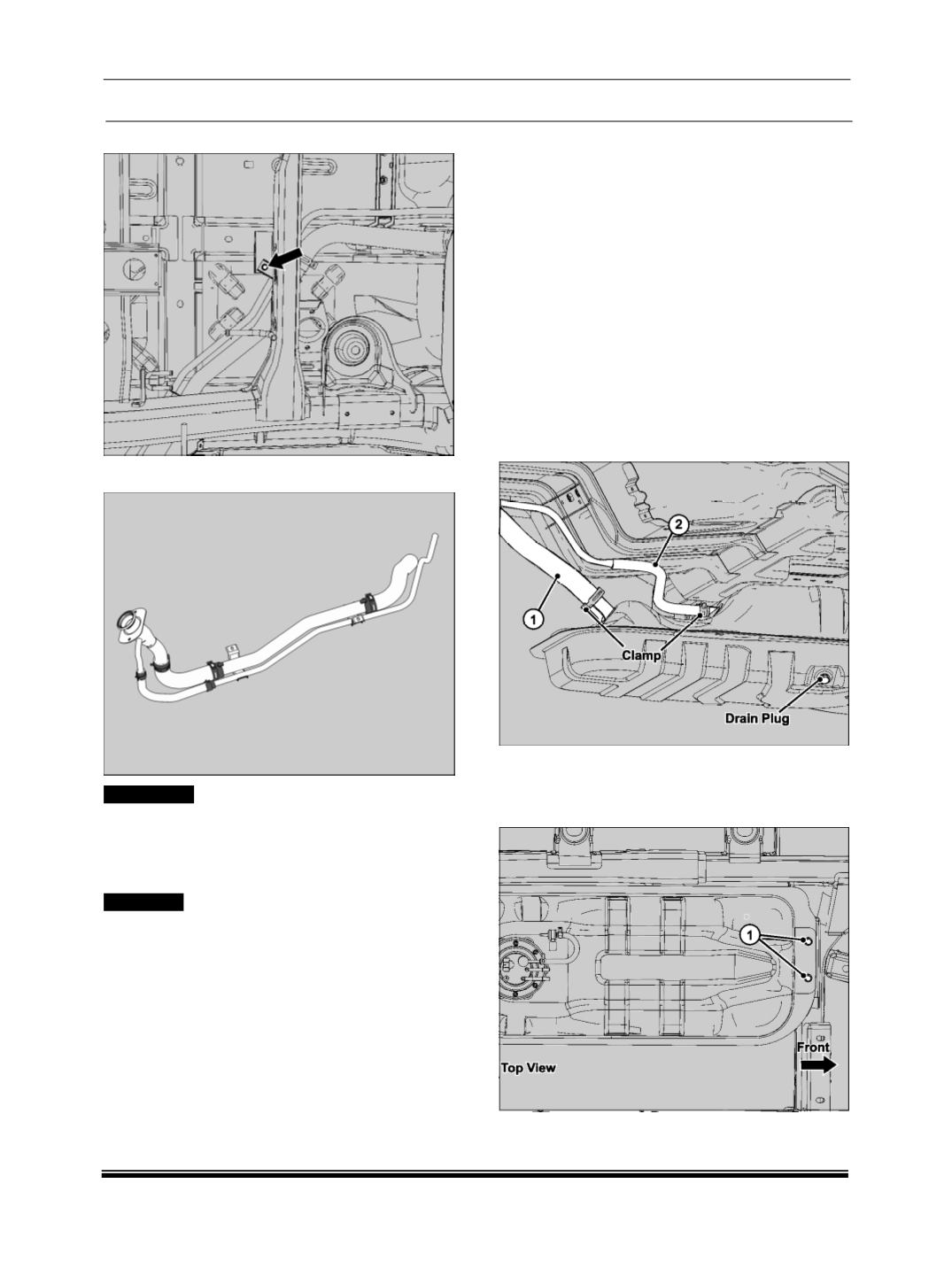

4. Loosen & remove fuel filler pipe clamp bolts.

5. Take out fuel filler assembly from body shell.

!! WARNING

A small amount of fuel may be released after fuel

lines are disconnected. To avoid the chance of inju-

ry, cover the pipe to be disconnected with cotton

cloth. Do not use cotton waste.

! CAUTION:

To avoid damage to vapour hoses while disconnect-

ing, slide back the clamps then twist the lines as you

pull.

FITMENT

Follow the reverse order of removal for fitment.

C. FUEL TANK

REMOVAL

1. Place the vehicle in a 2 poster lift.

2. Disconnect the electrical connections of the in-

tank pump and the fuel lines. Refer In-tank

pump removal process.

3. Raise the vehicle and drain the fuel.

NOTE

•

Ensure that the drain plug is refitted after the

fuel is being drained.

•

Refit new washer in drain plug and apply speci-

fied torque (4 Kg-m).

4. Disconnect the fuel filler hose (1) and the

breather hose (2).

5. Support the fuel tank from below.

6. Remove the front mounting bolts (1), mounted

from top.
