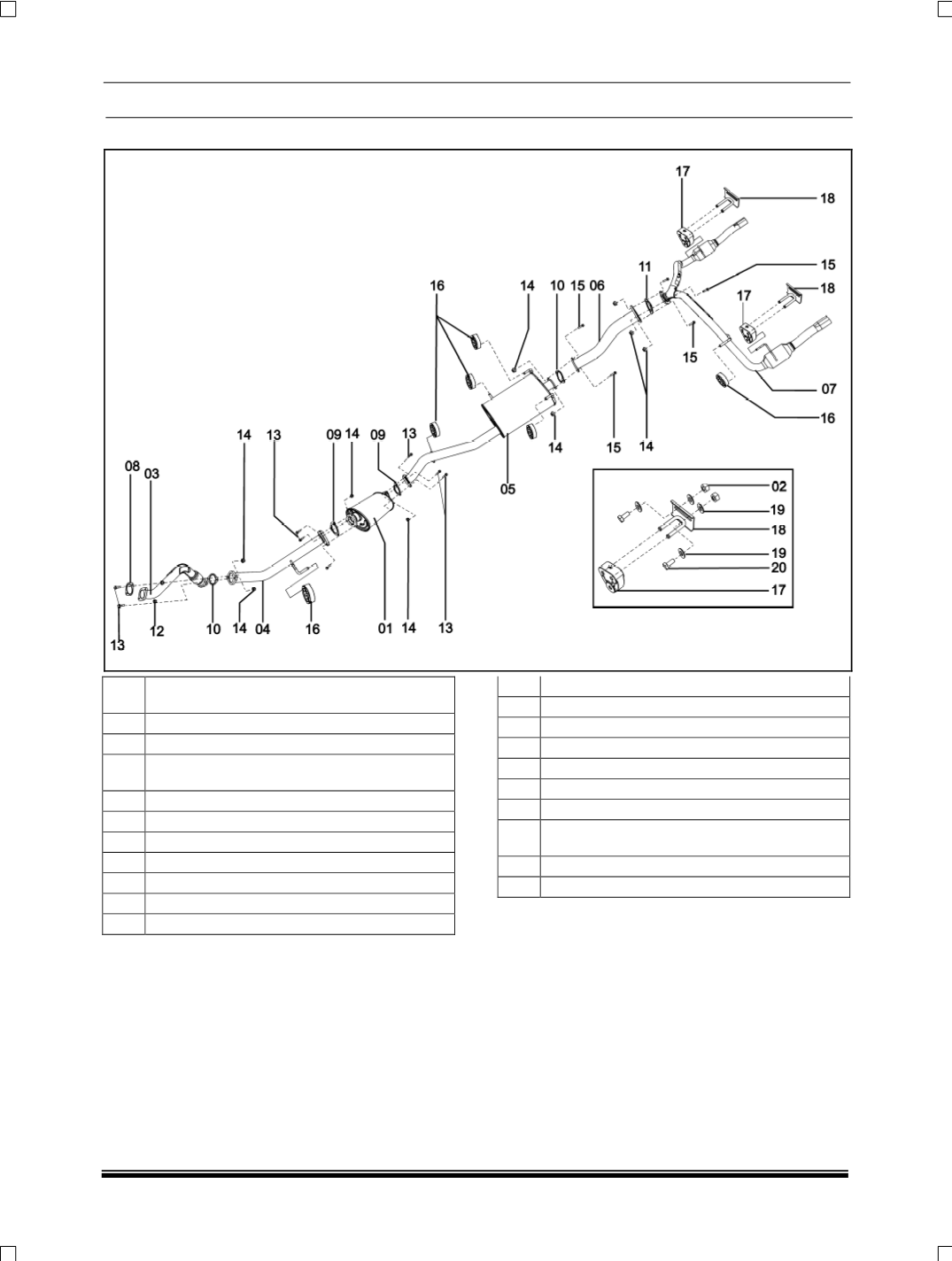

2.1.8.1.3 EXPLODED VIEW
SR.
NO
DESCRIPTION
01 Pre silencer assembly-Euro-V
02 Hexagonal nut M8
03
Assembly front pipe with flexible bellow
(Euro-V)
04 Middle pipe assembly-Euro-V
05 Assembly main silencer
06 Intermediate pipe assembly rear
07 Assembly post silencer with twin pipe
08 Gasket (cc to front pipe)
09 Assembly gasket
10 Assembly gasket (exhaust pipe)
11 Assembly gasket
12 Clinch nut with collar
13 Hexagonal flanged bolt M8X35
14 Hexagonal flanged nut AM8
15 Hexagonal flange screw M8X30
16 Rubber hanger exhaust
17 Rubber hanger
18
Assembly bracket exhaust tail pipe
mounting
19 Bright washer 8.4
20 Hexagonal screw M8X18
