BODY
16

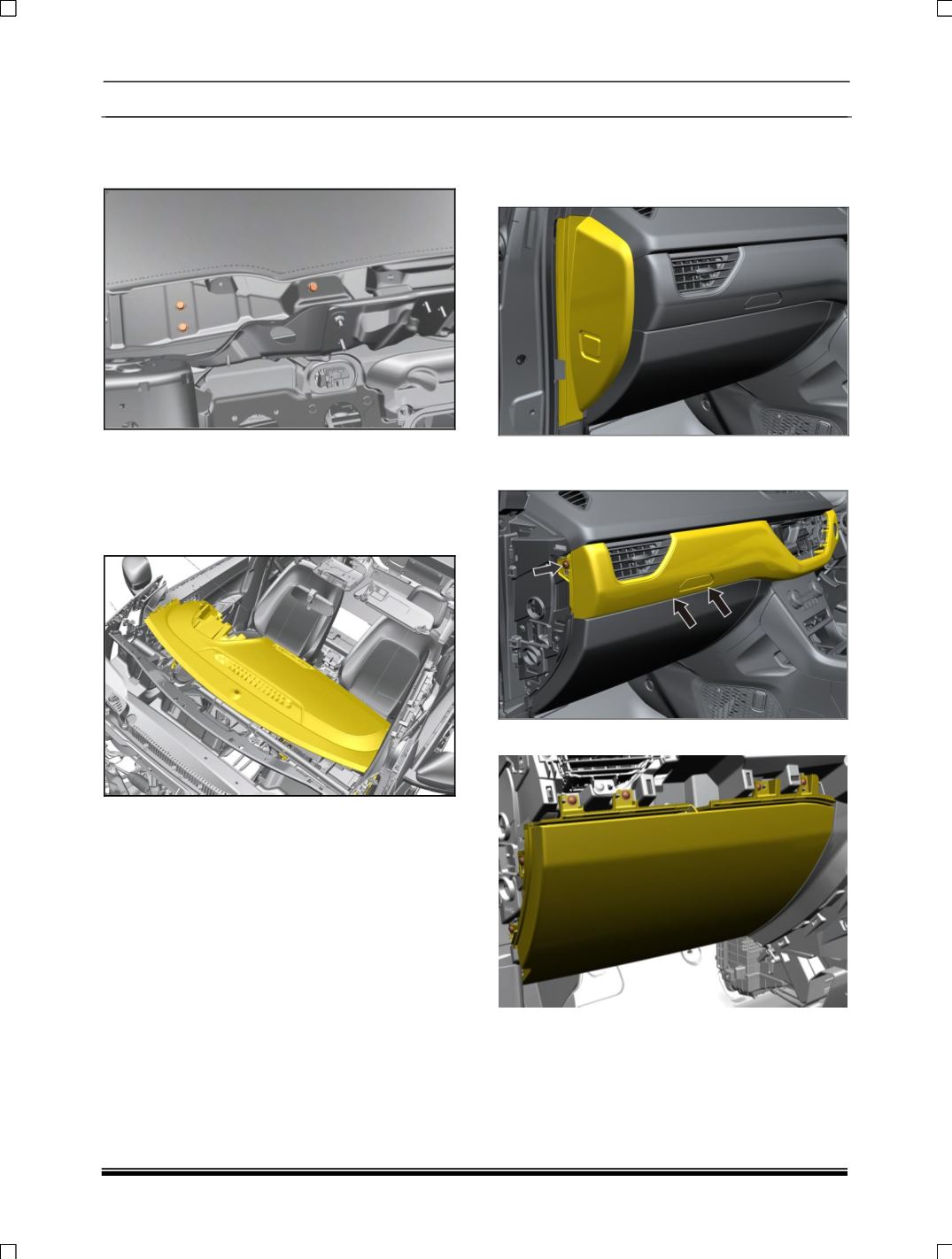

18. Remove mounting three (M8X110) bolts of
cockpit from engine side.( Torque 2.25 ± 10%
kg-m))
19. Dashboard assembly should be lifted first in
order to disengage from locators & then move
in -X direction. Also while removing out
Dashboard assembly, need to disengage
wiring harness connection on LH & RH side.
Carefully pull out cockpit with dashboard
FITMENT
For fitment follow reverse procedure of the
removal.
4.4. GLOVE BOX
REMOVAL
1. Pull out end cover LH side
2. Remove mounting screws & Pull out
dashboard mid panel
.
3. Remove six mounting screws of glove box.
