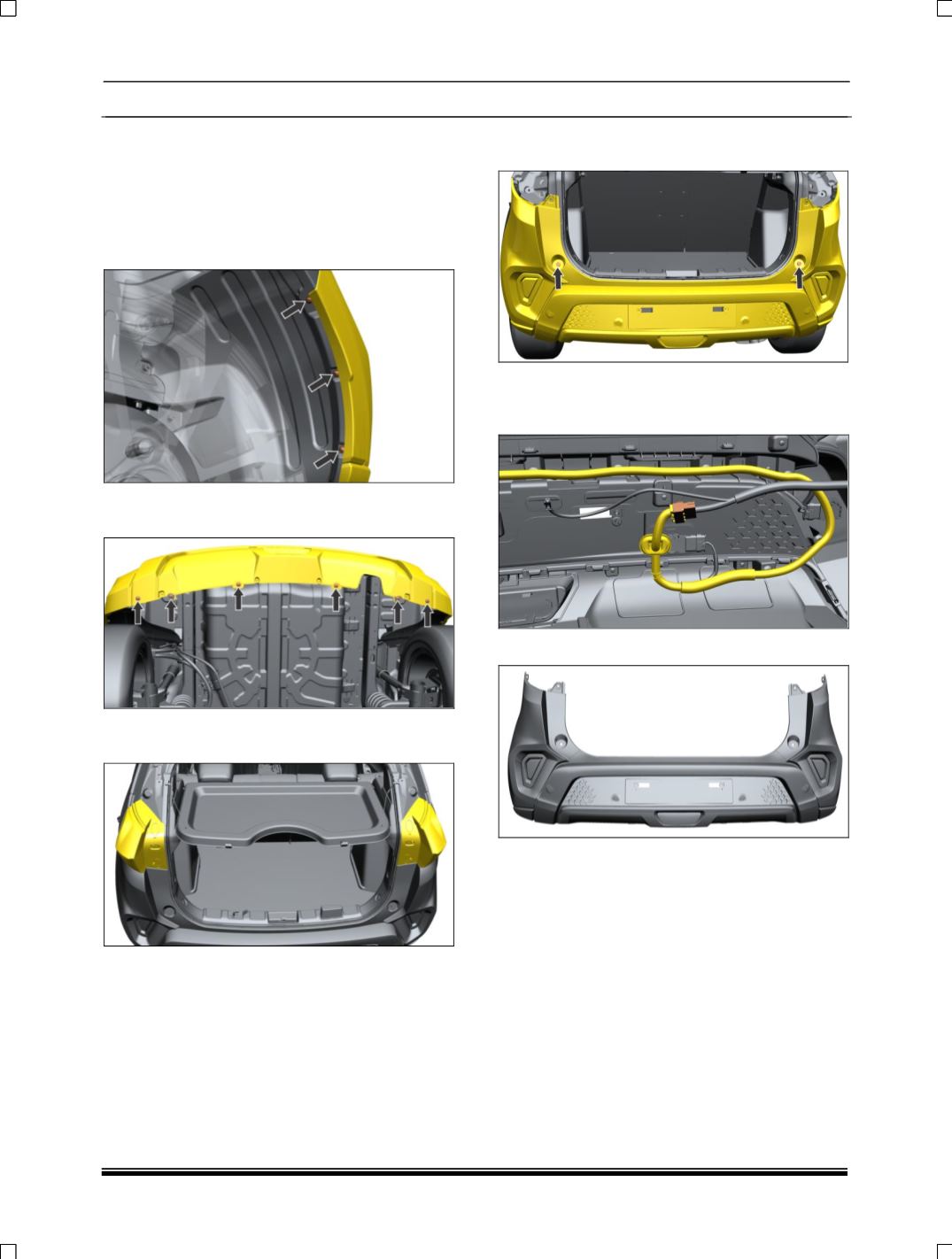

4.7 REAR BUMPER
REMOVAL
1. Open tail gate and remove body side door
bidding.
2. Remove FL TAP SCR C-ST4.8X22 on rear
wheel arc cladding and take out cladding.
3. Remove all screws and clips on Rear Bumper
Assembly.
4. Remove Body side Tail lamp.(Refer Tail Lamp
Removal procedure in Electrical Draft)
5. Remove Two M8 screws with washer on Rear
Bumper.
6. Pry out Rear Bumper from vehicle by
disconnecting electrical connection for reverse
parking sensors and lamp.
7. Separate Rear Bumper from Vehicle.
REAR BUMPER ASSEMBLY
Follow the reverse procedure of Rear Bumper
Removal.
