TRANSAXLE TA6300

41

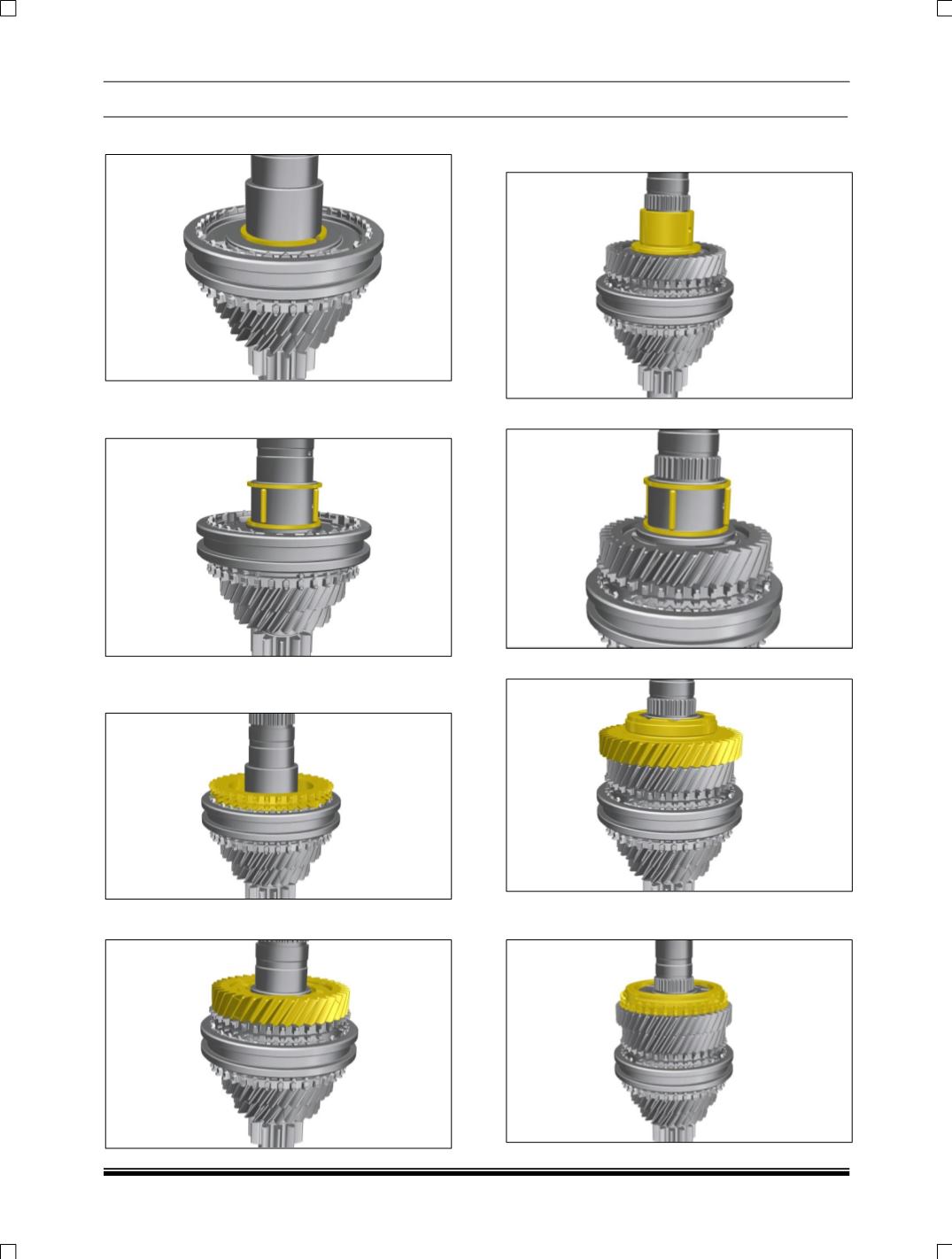

5. Assemble the snap ring on Engaging gear.

6. Place the needle cage 4

th

gear on shifter

sleeve.

7. Place the synchro cone (3rd /4th /5th /6th) on

input shaft.

8. Place the 4th gear on input shaft.

5th & 6th SYNCHROPACK ASSEMBLY:

1. Press the bush 5th gear on Input shaft.

2. Place the needle cage 5th gear on bush.

3. Place the 5th speed gear on Input Shaft.

4. Place the synchro cone (3rd /4th /5th /6th) on

input shaft.
