TRANSAXLE TA6300
40

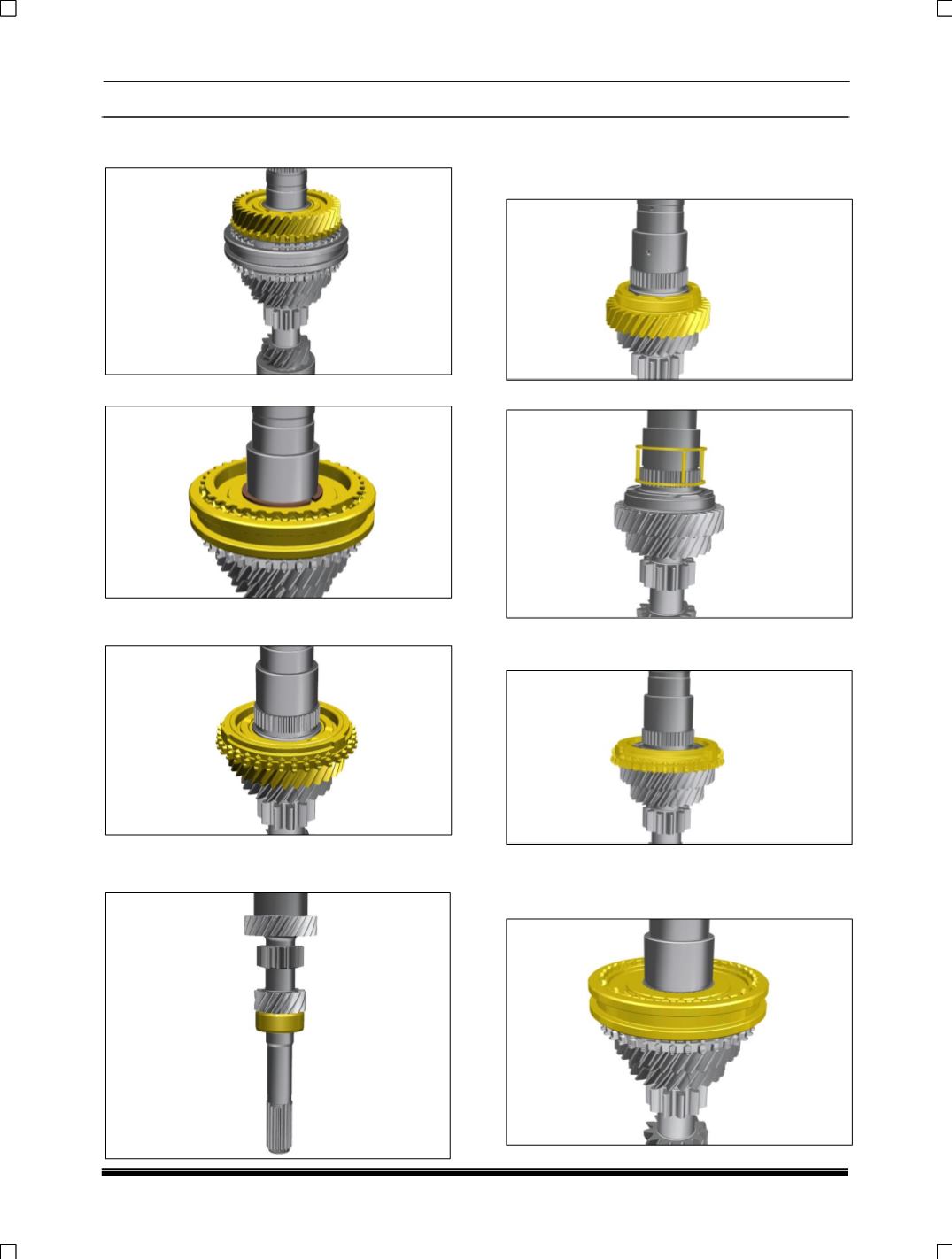

5. Remove 4th gear, needle cage by pulling
synchronizer sleeve.
6. Remove snap ring & take out engaging gear.
7. Remove 3rd gear, needle cage by pulling
synchronizer sleeve.
NOTE: Inner Race of cylindrical roller bearing
will be remain on input shaft.
INPUT SHAFT ASSEMBLY
3rd / 4th SYNCHROPACK ASSEMBLY:
1. Place the 3rd gear on input shaft.
2. Place the needle cage 3rd gear on input shaft.
3. Place the synchro cone (3rd /4th /5th /6th) on
3rd gear.
4. Place the engaging gear 3rd/ 4th Assy.such
that the smaller groove is upwards and
assemble.
