TRANSAXLE TA6300
43

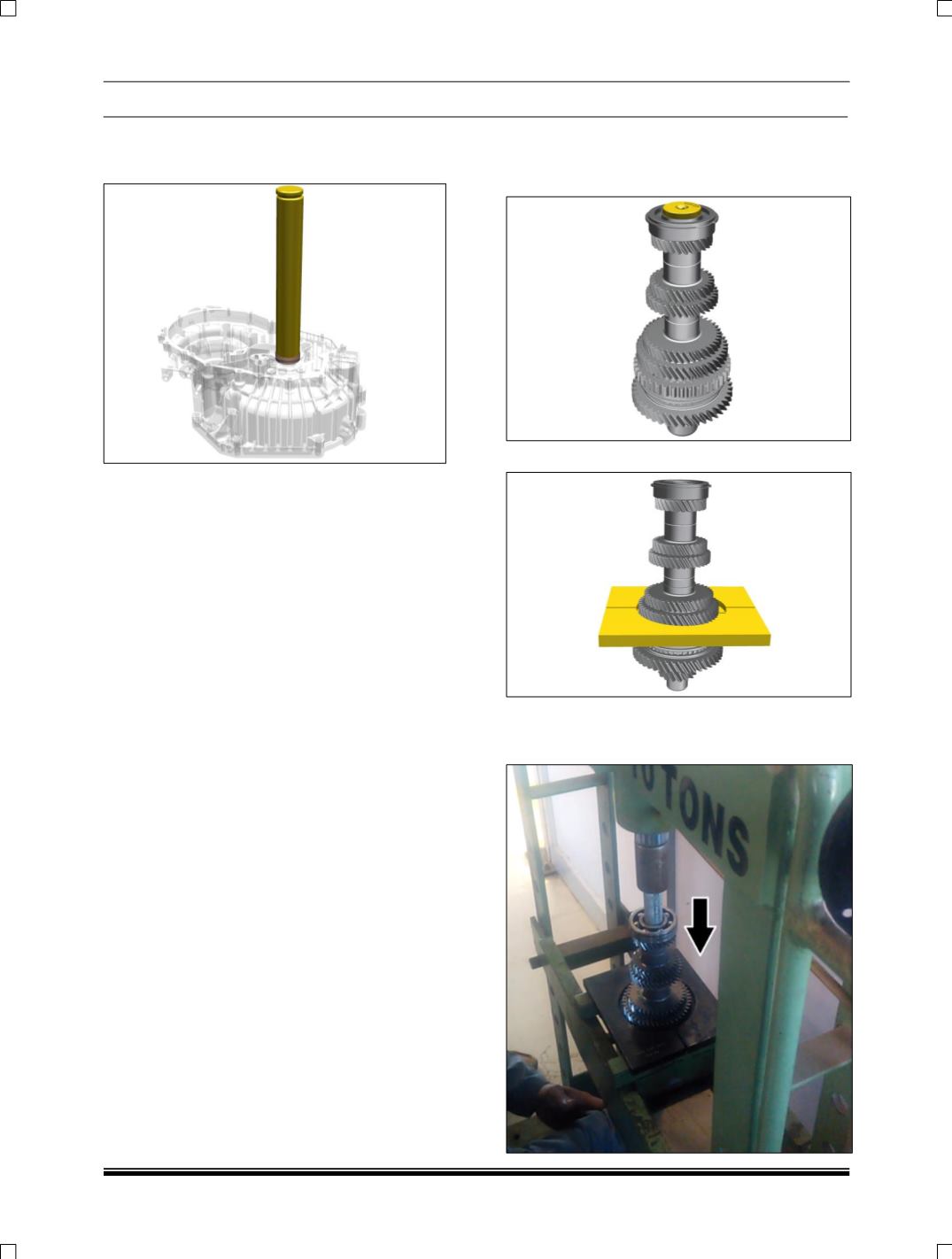

3. Press cylindrical roller bearing outer race on
housing front half-using drift part no 5438
5890 2604.
LAY SHAFT DISASSEMBLY:
1. Hold in bench voice and remove locking
screw of lay shaft.
2. Install support plate 5438 5890 2602.
3. Place lay shaft assembly on hydraulic press
with support plate & press lay shaft as shown.
Hold lay shaft from bottom.
