TRANSAXLE TA6300

45

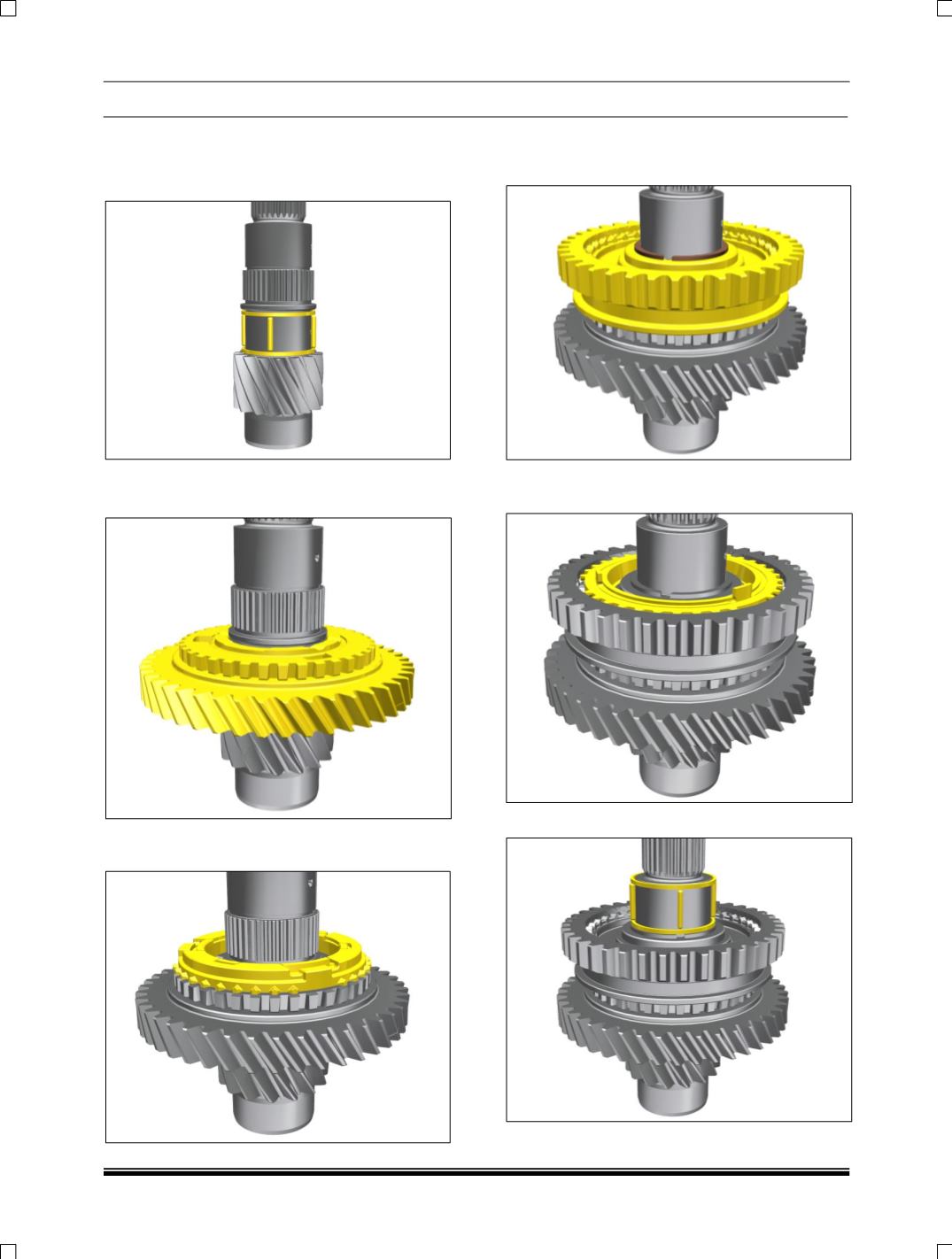

LAY SHAFT ASSEMBLY:

1st / 2nd SYNCHROPACK ASSEMBLY:

1. Place Needle Cage.

2. Place 1

st

gear assembly with synchronizer

ring.

3. Insert twin cone on 1

st

gear such that

intermediate cone lugs fits into 1st gear slots.

4. Place the engaging gear assembly 1st and

2nd such that the reverse gear tooth over it is

towards the 2nd gear. Lock the snap ring.

5. Place Assy twin cone 1

st

/2

nd

on engaging

gear.

6. Place Needle Cage
