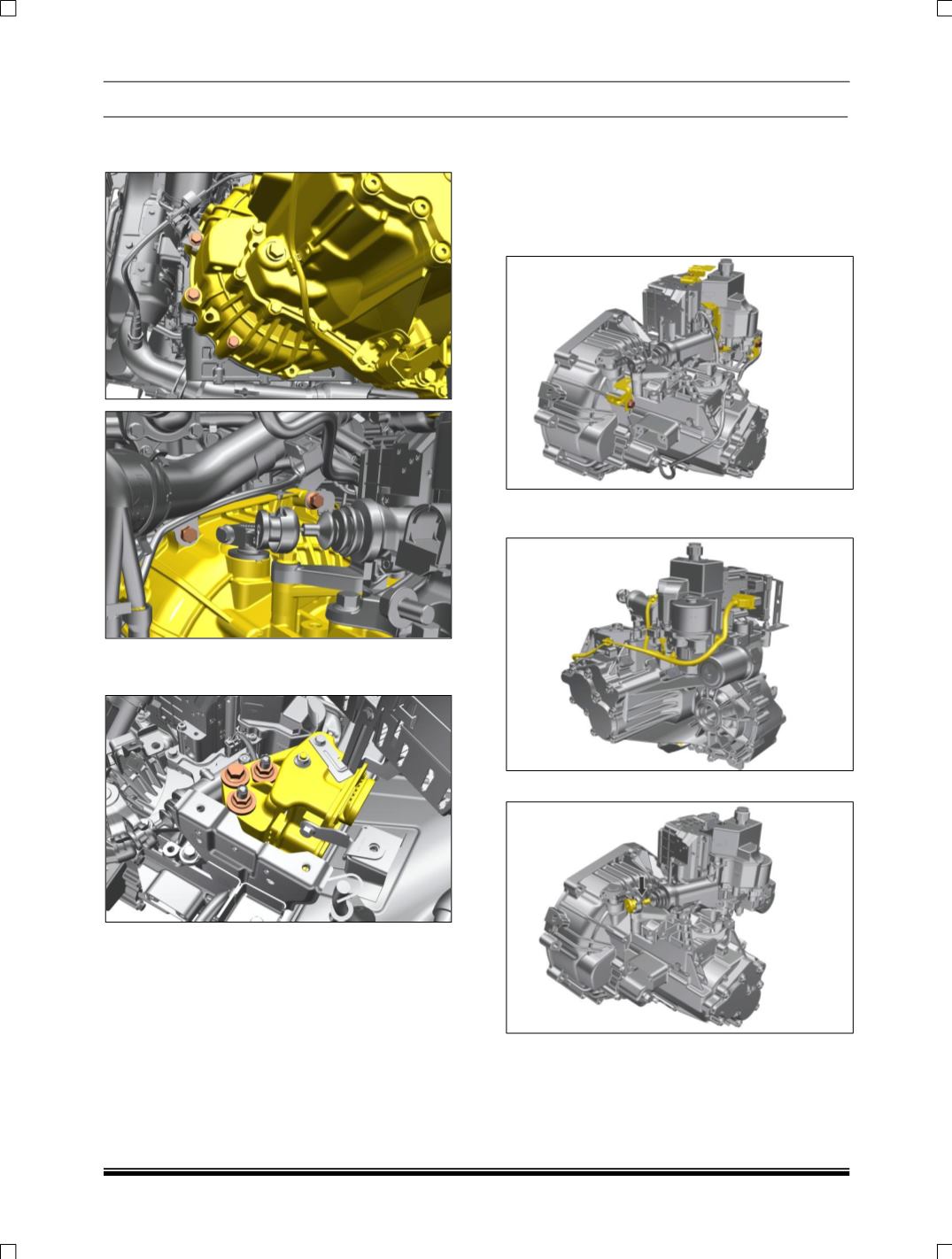

27. Remove hex flange bolt as shown on gear
box housing as shown
28. Lastly pull out gear box assembly from
engine by removing all B- mountings.
29. Finally take out Gear box Assembly with
AMT Kit from vehicle.
12. INSTALLATION OF TRANSAXLE ON
VEHICLE (FOR DIESEL VERSION):
Follow the reverse procedure of Assembly of
Transaxle on Vehicle.
13 TRANSAXLE DISASSEMBLY ON
BENCH:
1. Ensure that oil is drained completely from the
transaxle before mounting on the work stand.
2. Remove domed cap nut & Nyloc nut take out
Brackets as shown
3. Remove all electrical connection from AMT
Kit.
4. Remove clutch interface as shown
