TRANSAXLE TA6300
32

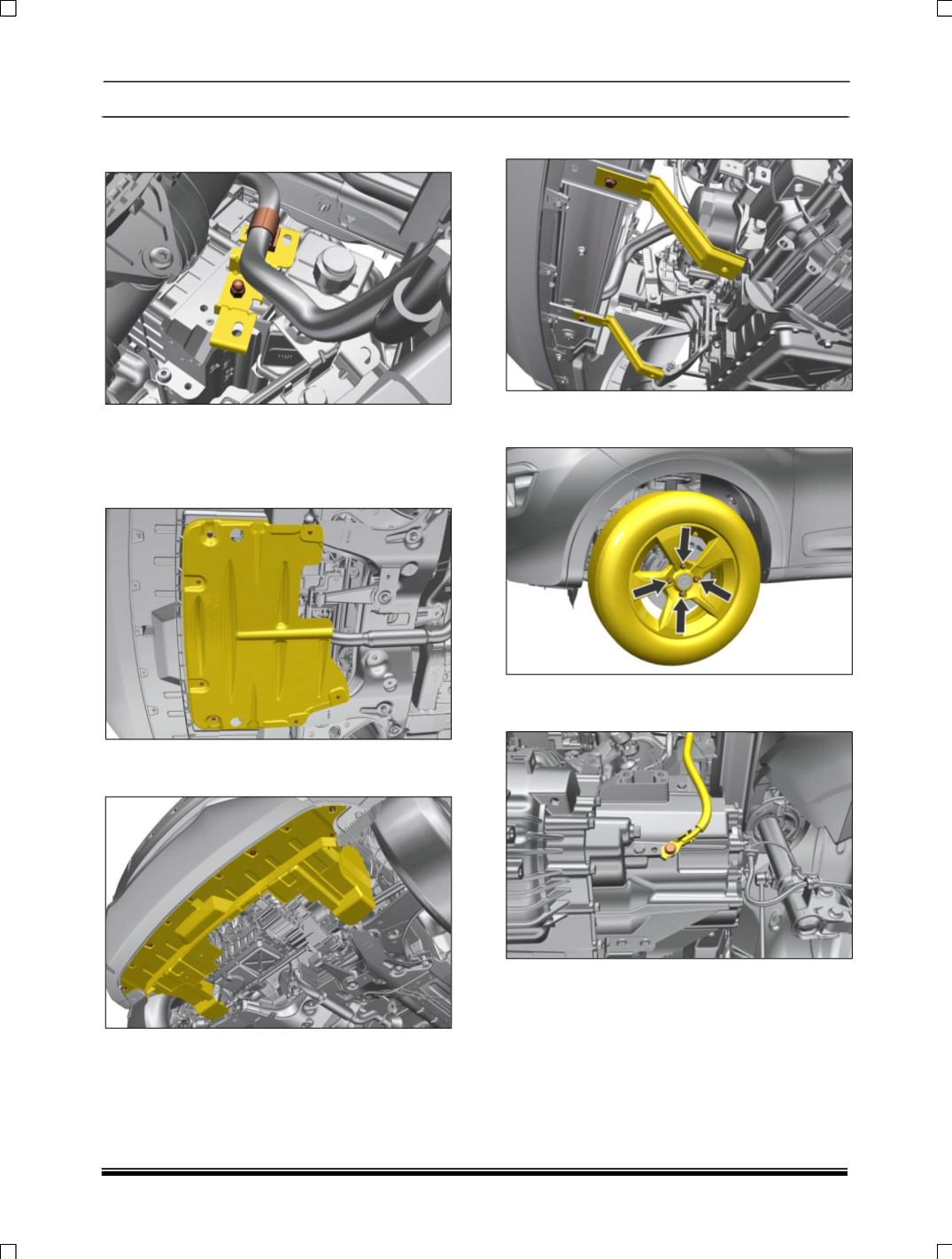

8. Take out Bracket mounted on AMT Kit as
shown.
9. Lossen wiring Harness around Transaxle
AMT.
10. Remove Assy. bottom shield mounting or
stone guard.
11. Remove splash guard & also remove mud
liner inner front LH & RH side.
12. Remove stone guard bracket Assy.
13. Remove four mountings & take out tyres on
LH & RH side as shown
14. Remove .earthing cable from gear box as
shown
