TRANSAXLE TA6300
34

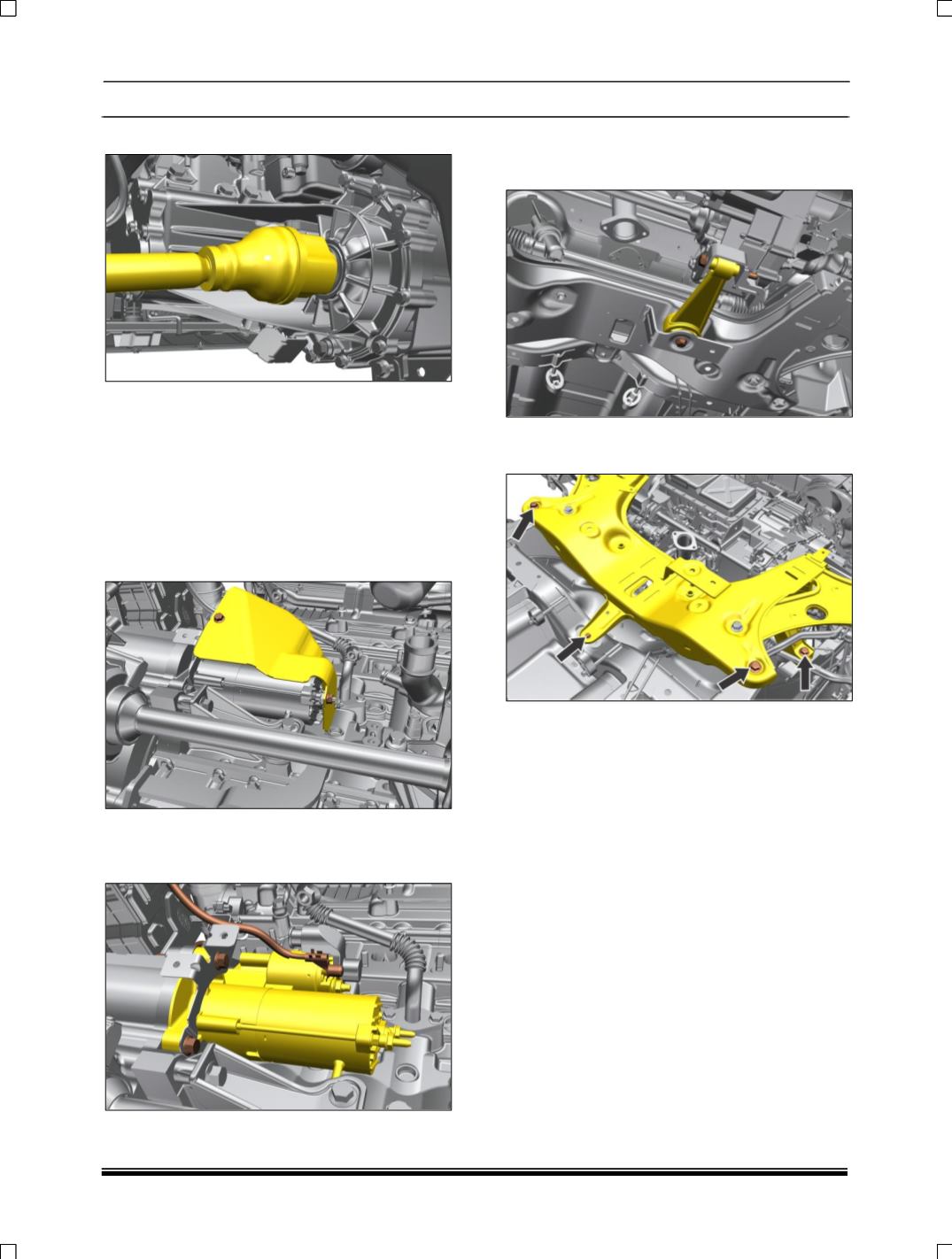

21. Remove Drive shaft from co-driver side.
Note:
Do not pull drive shaft excessively as the plunge
joint will come out of housing and damage the
boot Pry. Plunge joint housing for taking out joint
out of splines. Do not place the CV drive shaft on
rough / uncleaned surfaces. This might damage
the drive shaft boot.
22. Remove heat shield of starter motor as
shown.
23. Remove electrical connection & its three
mountings from starter motor & take out the
same.
24. Remove
C-Bracket
mountings
from
Subframe assembly & Gear box also take out
C-mounting bracket.
25. Remove Sub-Frame Assembly with lower
arm as shown
26. Give push support from bottom side of
Engine Assembly.
