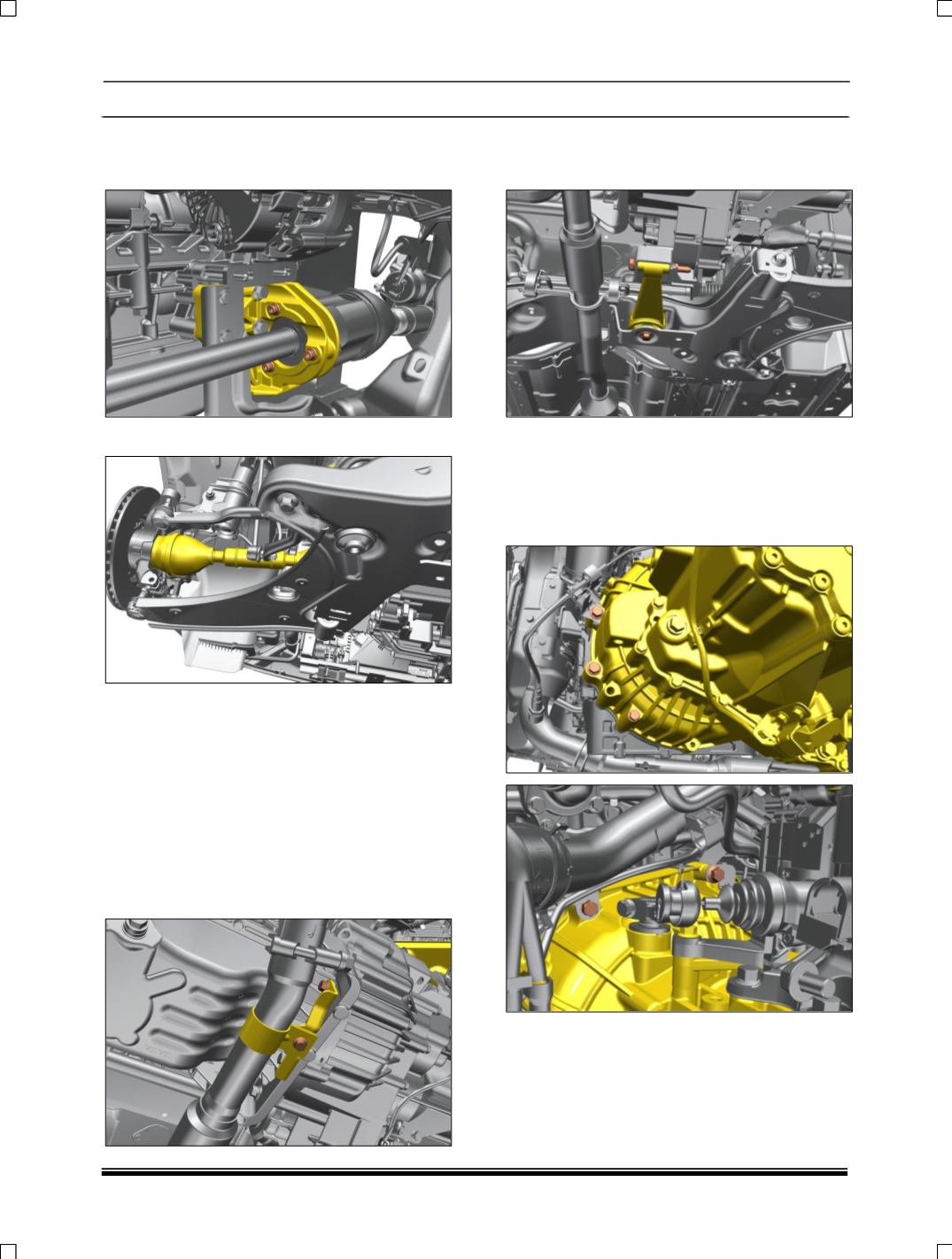

17. Remove 3 allen bolt of intermediate shaft &
take out Drive shaft from driver side/Engine
side.
18. Remove Drive shaft from co-driver side.
Note:
Do not pull drive shaft excessively as the plunge
joint will come out of housing and damage the
boot Pry. Plunge joint housing for taking out joint
out of splines. Do not place the CV drive shaft on
rough / uncleaned surfaces. This might damage
the drive shaft boot.
19. Remove Exhaust Front pipe mounting
Bracket on silencer support assembly to
make accessibility for Hex Flange bolt on
gear box as shown.
20. Remove
C-Bracket
mountings
from
Subframe assembly & Gear box also take out
C-mounting bracket.
21. Give push support from bottom side of
Engine Assembly.
22. Loosen the B- mountings
23. Remove hex flange bolt as shown on gear
box housing as shown
