23

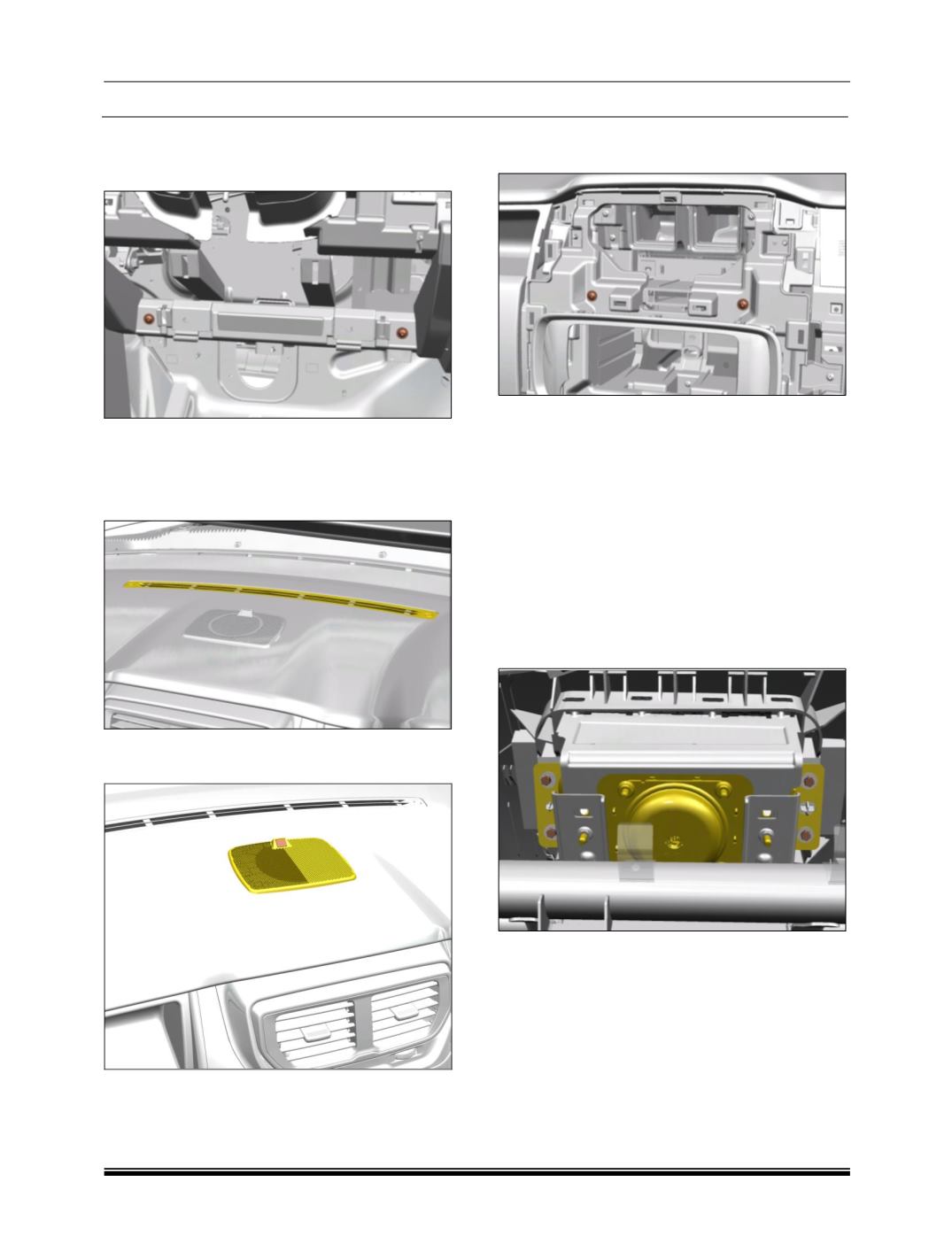

22. Loosen and remove two mounting screws

which are there behind the lower steering

column cover.

23. Remove trim-A from both sides.

(For

procedure refer trim removal section.)

24. Pull out the defrost grill and disconnect the

solar sensor connection.

25. Pull out the speaker assembly (applicable for

Xm version only).

26. Loosen two mounting screws which are behind

the TFT.

27. Remove the dashboard from the vehicle.

ASSEMBLY:

For assembly follow reverse procedure of the

removal.

I. PAB MODULE:

REMOVAL:

1. Remove dashboard assembly.

(For procedure

refer dashboard removal process.)

2. Loosen and remove four mounting screws and

carefully separate the PAB module from the

dashboard.

NOTE:

After removal keep the deploying part facing

upward and away from loose parts.

ASSEMBLY:

For assembly follow reverse procedure of removal.
